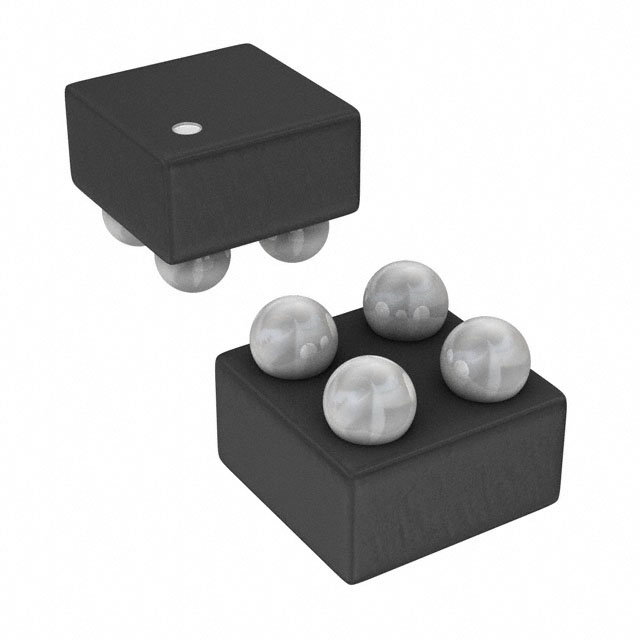

超低噪声200 mA时, CMOS线性稳压器 Ultralow Noise, 200 mA, CMOS Linear Regulator
PMIC - 稳压器 - 线性 正 固定 1 输出 200mA 4-WLCSP(0.76x0.76)
得捷:
IC REG LINEAR 2.1V 200MA 4WLCSP
立创商城:
ADP151ACBZ-2.1-R7
艾睿:
Having trouble maintaining a steady voltage? This LDO ADP151ACBZ-2.1-R7 linear regulator from Analog Devices will give you control over the voltage levels of your circuit. Its typical dropout voltage at current is 0.14@200mA V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.2 A. Use this part at voltages between 2.2 V and 5.5 V. With a fixed output that has a voltage of 2.1 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 0.002%/mATyp and line regulation of 0.05%/V. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
Chip1Stop:
LDO Regulator Pos 2.1V 0.2A 4-Pin WLCSP T/R
Verical:
LDO Regulator Pos 2.1V 0.2A 4-Pin WLCSP T/R
DeviceMart:
IC REG LDO 2.1V .2A 4WLCSP
输出接口数 1
输出电压 2.1 V
输出电流 200 mA
供电电流 265 µA
跌落电压 0.01V @10mA,0.135V @200mA
输入电压Max 5.5 V
输入电压Min 2.2 V
输出电流Max 0.2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 2.2V ~ 5.5V
安装方式 Surface Mount
引脚数 4
封装 WLCSP-4
宽度 0.76 mm
封装 WLCSP-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
