ADP2311ACPZ-2-R7

降压型 Vin=4.5V~18V Vout=600mV~18V 1A

Product Details

The ADP2311 is a fully integrated, dual output, synchronous step-down dc-to-dc regulator. The regulator operates from input voltages of 4.5 V to 18 V, and the output can regulate down to 0.6 V. Each channel can provide up to 1 A of continuous output current.

The ADP2311 integrates the high-side and low-side MOSFETs to provide a very high efficiency, compact solution. Both channels of the regulator run at 180° out of phase to reduce the input ripple current and the input capacitor size, thereby helping to lower system electromagnetic interference EMI. The ADP2311 also integrates internal compensation and soft start circuitry to simplify the design.

An on-chip watchdog timer can reset the microprocessor if it fails to strobe within a preset timeout period. Accurate voltage monitoring circuitry and a power fail comparator provide a controlled power-up and power-down sequence to enhance system reliability.

The ADP2311 also includes undervoltage lockout UVLO, overvoltage protection OVP, overcurrent protection OCP, and thermal shutdown TSD.

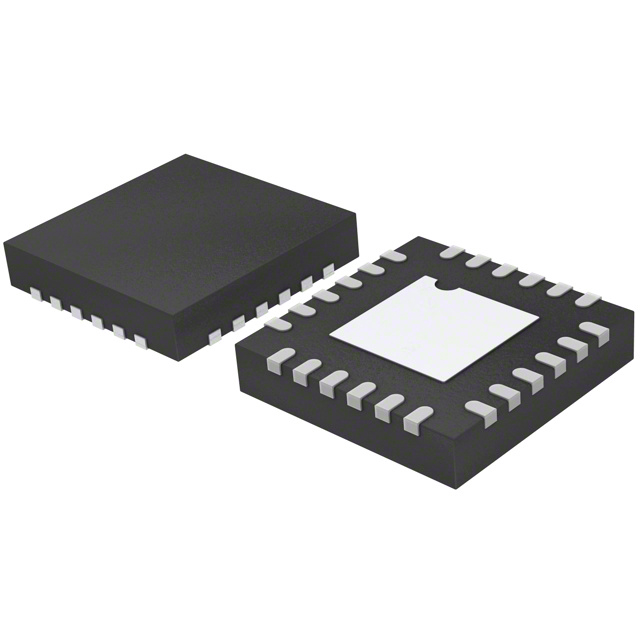

The ADP2311 operates over the −40°C to +125°C junction temperature range and is available in a 24-lead LFCSP package.

**Applications**

.

Industrial and instrumentation

.

Healthcare and medical

.

DC-to-DC point of load applications

### Features and Benefits

.

Input voltage: 4.5 V to 18 V

.

±1.0% output accuracy

.

Integrated MOSFET: 110 mΩ/60 mΩ typical

.

Continuous output current: 1 A/1 A

.

Power fail comparator generates warning

.

Power-on reset with programmable delay timer

.

Adjustable voltage monitor for power-down Channel 2

.

Watchdog refresh input

.

Dual phase with 180° out-of-phase operation

.

Fixed switching frequency: 300 kHz

.

Internal compensation and soft start

.

Stable with low ESR output ceramic capacitors

.

Precision enable input

.

Power feedback during power-off

.

UVLO, OCP, OVP, and thermal shutdown protection
