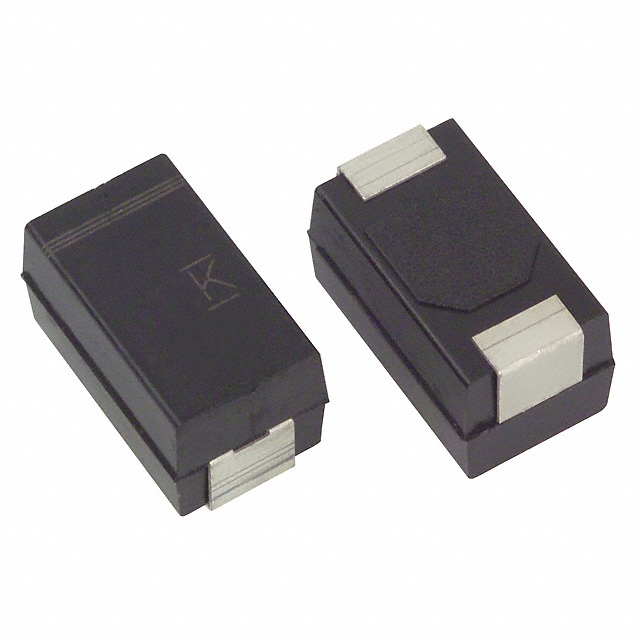

KEMET A700X107M12RATE015 电容, 有机铝聚合物, 100UF, 12.5V, 20%, SMD
By adding one of Kemet"s conductive polymer aluminum solid capacitors to your circuit, you can ensure safe operation of the ICs and other components from unexpected loads. It can withstand a voltage of 12.5 VDC. It has 2 terminals. It has a tolerance of 20%. This product is 7.3 mm long, 4 mm tall and 4.3 mm deep. Its leakage current is 50@5Min μA. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 125 °C.
额定电压DC 12.0 V
电容 100 µF
等效串联电阻ESR 15 mΩ
容差 ±20 %
纹波电流 3900 mA
纹波电流低频 3.9 A
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 12 V
安装方式 Surface Mount
封装 7343
长度 7.3 mm
宽度 4.3 mm
高度 4 mm
封装 7343
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
寿命（小时） 5000h @105℃
制造应用 -, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
A700X107M12RATE015 KEMET Corporation 基美 | 当前型号 | 当前型号 |
A700X107M12RATE012 基美 | 功能相似 | A700X107M12RATE015和A700X107M12RATE012的区别 |
A700X107M12RATE0157280 基美 | 功能相似 | A700X107M12RATE015和A700X107M12RATE0157280的区别 |
