A6T1102

OMRON ELECTRONIC COMPONENTS  A6T1102  DIP / SIP开关, A6T系列, SPST, 通孔安装, 1 电路, DIP密封, 24 VDC

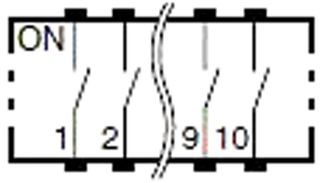

The A6T series slide type DIP Switch with through-hole terminals in a wide assortment of pole configurations. The gold-plated twin contacts and a slide-type, self-cleaning mechanism ensure high reliability. Available in washable with seal tape models. The wide product line extends from models with 1 to 10 poles to meet a wide range of needs.

.

10µA at 3.5VDC Minimum permissible load

.

200mR Maximum contact resistance

.

100MR at 250VDC Minimum insulation resistance

.

500VAC Dielectric strength for 1 minute between terminals

.

30 to 1000gf 0.3 to 9.8N Operating force

.

-20 to 70°C Ambient operating temperature

.

1000 Operations minimum mechanical service life

.

1000 Operations minimum electrical service life
