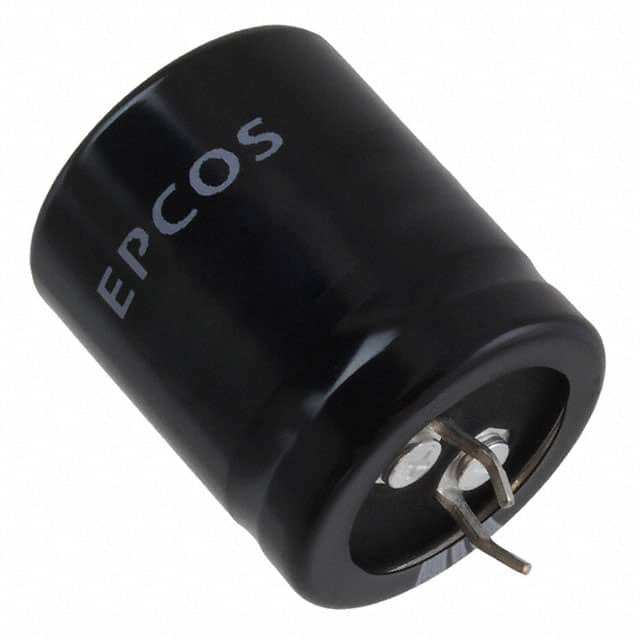

EPCOS B43505A9107M000 铝电解电容, 摁入式, B43505系列, 100 µF, ± 20%, 400 V, 25 mm, 0.88 ohm
Features
Long useful life
High reliability
Outstanding ripple current capability
Low ESR
Capacitors with all insulation versions pass the needle flametest according to IEC 60695-11-5 for all flame exposure times up to 120 s
RoHS-compatible
Applications
Frequency converters
Professional power supplies in industrial electronics and in data processing equipment
欧时:
Snap-in Al electro cap,400V 105deg 100uF
Newark:
# EPCOS B43505A9107M000 Electrolytic Capacitor, Snap-in, B43505 Series, 100 F, 20%, 400 V, 25 mm, 0.88 ohm
额定电压DC 400 V
电容 100 µF
等效串联电阻ESR 0.88 Ω
容差 ±20 %
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 400 V
安装方式 Through Hole
引脚数 2
封装 Radial
引脚间距 10 mm
高度 30 mm
直径 25.0 mm
封装 Radial
引脚间距 10 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 105℃
产品生命周期 Not For New Designs
包装方式 Bulk
寿命（小时） 4000h @85℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
B43505A9107M000 Epcos 爱普科斯 | 当前型号 | 当前型号 |
ELG107M400AQ3AA 基美 | 功能相似 | B43505A9107M000和ELG107M400AQ3AA的区别 |
MCHPR400V107M22X32 Multicomp | 功能相似 | B43505A9107M000和MCHPR400V107M22X32的区别 |
