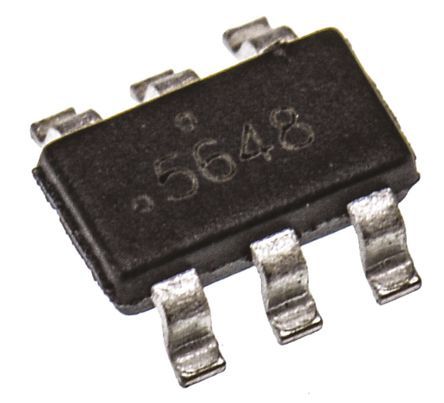

FAIRCHILD SEMICONDUCTOR FDC6303N 双路场效应管, MOSFET, 双N沟道, 680 mA, 25 V, 450 mohm, 4.5 V, 800 mV
The is a dual N-channel logic level enhancement-mode FET with high cell density and DMOS technology. This very high density process is especially tailored to minimize ON-state resistance. This device has been designed especially for low voltage applications as a replacement for digital transistors in load switching applications. Since bias resistors are not required this one N-channel FET can replace several digital transistors with different bias resistors like the IMHxA series.
额定电压DC 25.0 V
额定电流 680 mA
针脚数 6
漏源极电阻 450 mΩ
极性 N-Channel, Dual N-Channel
耗散功率 900 mW
阈值电压 800 mV
输入电容 50.0 pF
栅电荷 1.64 nC
漏源极电压Vds 25 V
漏源击穿电压 25.0 V
栅源击穿电压 8.00 V
连续漏极电流Ids 680 mA
上升时间 8.5 ns
输入电容Ciss 50pF @10VVds
额定功率Max 700 mW
下降时间 13 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 0.9 W
安装方式 Surface Mount
引脚数 6

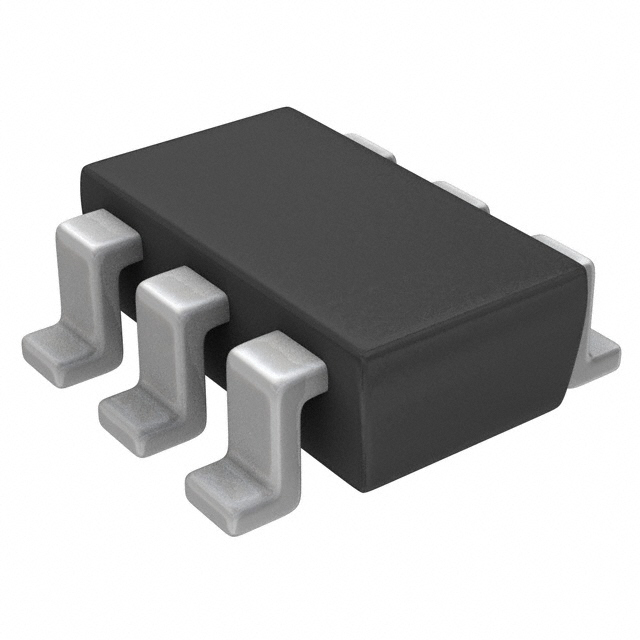

封装 TSOT-23-6
长度 3 mm
宽度 1.7 mm
高度 1 mm
封装 TSOT-23-6
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
FDC6303N Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
FDG6313N 飞兆/仙童 | 类似代替 | FDC6303N和FDG6313N的区别 |
FDG6313N_NL 飞兆/仙童 | 功能相似 | FDC6303N和FDG6313N_NL的区别 |
