静态随机存取存储器 4Mb 512Kx8 10ns Async 静态随机存取存储器 3.3v
DESCRIPTION
The ISSIIS61LV5128AL is a very high-speed, low power, 524,288-word by 8-bit CMOS static RAM. The
IS61LV5128AL is fabricated using ISSI"s high-performance CMOS technology. This highly reliable process
coupled with innovative circuit design techniques, yields higher performance and low power consumption devices.
FEATURES
• High-speed access times: 10, 12 ns
• High-performance, low-power CMOS process
• Multiple center power and ground pins for greater noise immunity
• Easy memory expansion with CEand OE options
• CEpower-down
• Fully static operation: no clock or refresh required
• TTL compatible inputs and outputs
• Single 3.3V power supply
• Packages available:
– 36-pin 400-mil SOJ
– 36-pin miniBGA
– 44-pin TSOP Type II
• Lead-free available
电源电压DC 3.30 V, 3.60 V max
位数 8
存取时间 10 ns
内存容量 4000000 B
存取时间Max 10 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3.135V ~ 3.6V
电源电压Max 3.63 V
电源电压Min 3.135 V
安装方式 Surface Mount
引脚数 36

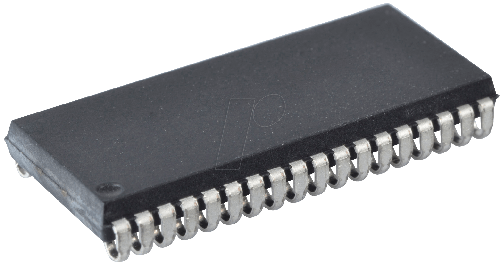

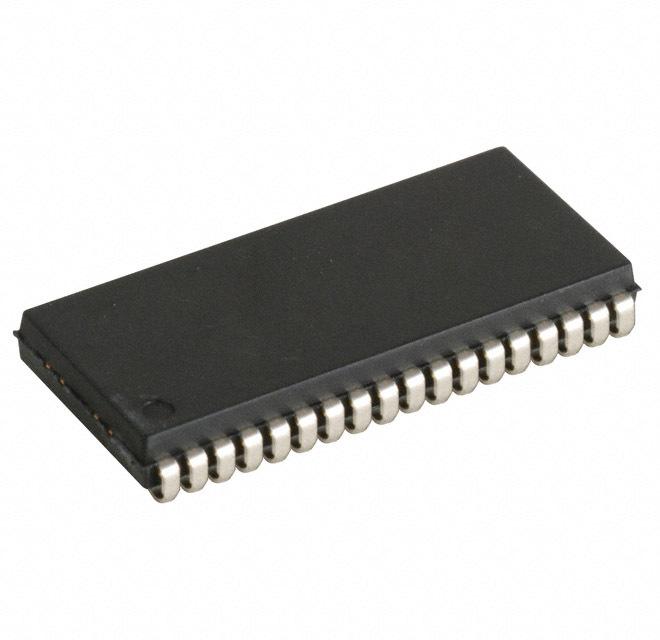

封装 SOJ-36
封装 SOJ-36
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Not Recommended for New Design
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 无铅
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
IS61LV5128AL-10KLI Integrated Silicon SolutionISSI | 当前型号 | 当前型号 |
IS61LV5128AL-10KLI-TR Integrated Silicon SolutionISSI | 完全替代 | IS61LV5128AL-10KLI和IS61LV5128AL-10KLI-TR的区别 |
IS61LV5128AL-10KI Integrated Silicon SolutionISSI | 完全替代 | IS61LV5128AL-10KLI和IS61LV5128AL-10KI的区别 |
CY7C1049DV33-10VXI 赛普拉斯 | 功能相似 | IS61LV5128AL-10KLI和CY7C1049DV33-10VXI的区别 |
