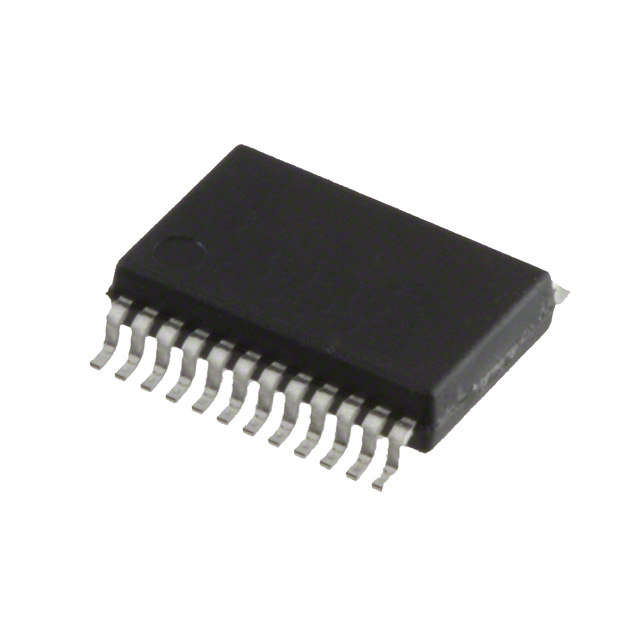

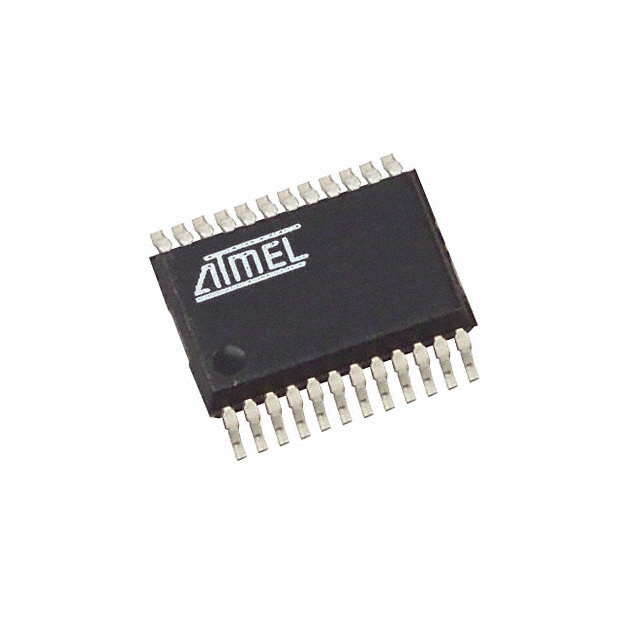

IR2114SSPBF

Driver 1.2kV 3A 2Out Hi/Lo Side Half Brdg Non-Inv 24Pin SSOP Tube

The IR2114 gate driver family is suited to drive a single half bridge in power switching applications. These drivers provide high gate driving capability 2 A source, 3 A sink and require low quiescent current, which allows the use of bootstrap power supply techniques in medium power systems. These drivers feature full short circuit protection by means of power transistor desaturation detection and manage all half-bridge faults by smoothly turning off the desaturated transistor through the dedicated soft shutdown pin, therefore preventing over-voltages and reducing EM emissions. In multi-phase systems, the IR2114,41/ IR2214,41 drivers communicate using a dedicated local network SY_FLT and FAULT/SD signals to properly manage phase-to-phase short circuits. The system controller may force shutdown or read device fault state through the 3.3 V compatible CMOS I/O pin FAULT/SD. To improve the signal immunity from DC-bus noise, the control and power ground use dedicated pins enabling low-side emitter current sensing as well. Undervoltage conditions in floating and low voltage circuits are managed independently.

**Features:**

* Floating channel up to +600 V or +1200 V

* Soft over-current shutdown

* Synchronization signal to synchronize shutdown with the other phases

* Integrated desaturation detection circuit

* Two stage turn on output for di/dt control

* Separate pull-up/pull-down output drive pins

* Matched delay outputs

* Undervoltage lockout with hysteresis band
