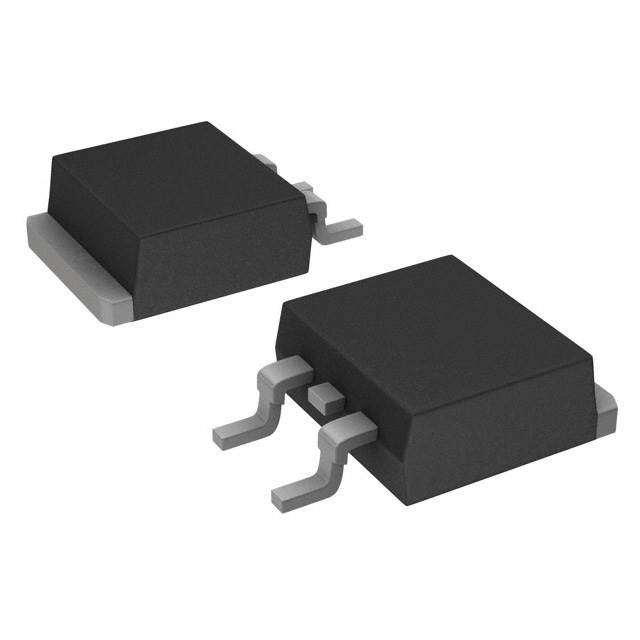

IPB120P04P404ATMA1

晶体管, MOSFET, P沟道, -120 A, -40 V, 0.0026 ohm, -10 V, -3 V

Summary of Features:

.

P-channel - Normal Level - Enhancement mode

.

AEC qualified

.

MSL1 up to 260°C peak reflow

.

175°C operating temperature

.

Green package RoHS compliant

.

100% Avalanche tested

Benefits:

.

No charge pump required for high side drive.

.

Simple interface drive circuit

.

World"s lowest RDSon at 40V

.

Highest current capability

.

Lowest switching and conduction power losses for highest thermal efficiency

.

Robust packages with superior quality and reliability

.

Standard packages TO-252, TO-263, TO-220, TO-262

Target Applications:

.

High-Side MOSFETs for motor bridges half-bridges, H-bridges, 3-phase-motors

.

Bridge configuration could be realized with 40V P-Channel as high side device with no need of charge pump

Simulation/SPICE-Model
