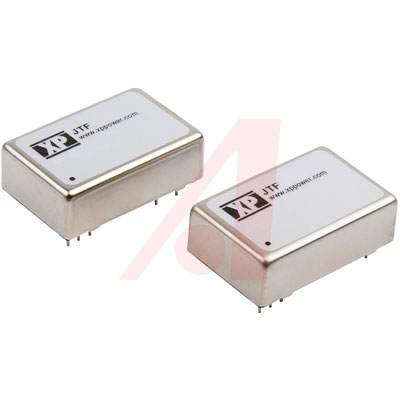

XP POWER JTF1248D12 Isolated Board Mount DC-DC Converter, 4:1Input, Fixed, 2 Output, 18V, 75V, 12W, 12V
12 Watt DC/DC converter in an industry standard DIP-24 metal case with an extra wide 4:1 input range and continuous short circuit protection. This robust, high reliability, industrial grade product is suitable for a wide range of applications.
- .
- 4:1 Input Range
- .
- High Power Density
- .
- 1600 VDC Isolation
- .
- DIP-24 Metal package
- .
- Efficiency up to 90%
- .
- Remote On/Off
- .
- -40°C to 100°C Operating Temperature
电源电压DC 48.0 V
额定功率 12 W
输出接口数 2
输入电压DC 18.0V ~ 75.0V
输出电压 12 VDC
输出电流 500 mA
输出功率 12 W
隔离电压 1.6 kV
输入电压Max 75 V
输入电压Min 18 V
输入电压DC Max 75 V
输入电压DC Min 18 v
输出电流Max 500mA, 500mA
输出功率Max 12 W
输入电压 18VDC ~ 75VDC
安装方式 Through Hole
封装 DIP-24
宽度 20.32 mm
高度 10.16 mm
封装 DIP-24
重量 20.0 g
工作温度 -40℃ ~ 105℃
产品生命周期 Active
制造应用 Industrial, ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
JTF1248D12 XP Power | 当前型号 | 当前型号 |
THD 12-4822WI Traco Electronic | 功能相似 | JTF1248D12和THD 12-4822WI的区别 |
