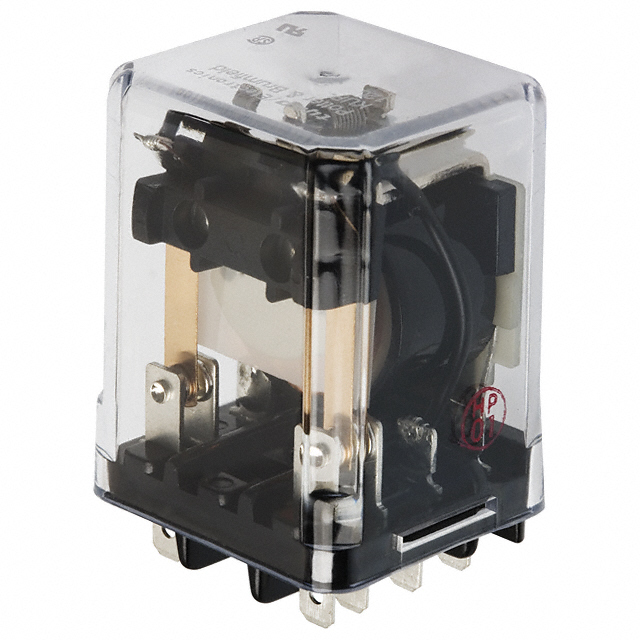

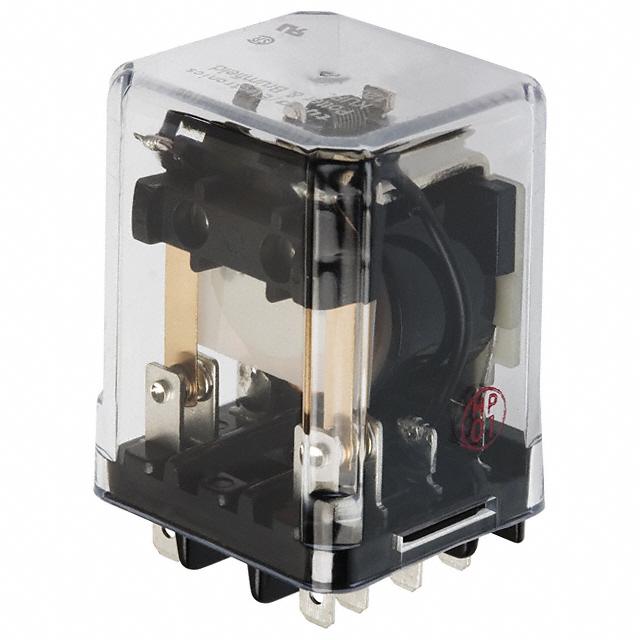

TE CONNECTIVITY / POTTER & BRUMFIELD KUP-14D25-24 功率继电器
通用 继电器 3PDT（3 Form C） 24VDC 线圈 可插
得捷:
RELAY GEN PURPOSE 3PDT 10A 24V
立创商城:
24VDC 10A 无锁存
贸泽:
通用继电器 3P PLN QC/SLDR 24VDC
e络盟:
继电器, 3PDT, 240VAC, 32VDC, 10A
艾睿:
Electromechanical Relay 24VDC 472Ohm 10A 3PDT38.89x35.71x55.55mm Socket Industrial Relay
Chip1Stop:
Electromechanical Relay 24VDC 472Ohm 10A 3PDT 38.89mm 35.71mm 55.55mm Socket Industrial Relay
Verical:
Power Relay 24VDC 10A 3PDT39.4x35.7x50mm Socket
Newark:
Power Relay, 3PDT, 24 VDC, 10 A, KUP Series, Socket, Non Latching
MASTER:
Power Relay 24VDC 10A 3PDT39.4x35.7x50mm Socket
Online Components:
Electromechanical Relay 24VDC 472Ohm 10A 3PDT38.89x35.71x55.55mm Socket Industrial Relay
ICbanQ:
General Purpose / Industrial Relays 3P PLN QC/SLDR 24VDC
Electro Sonic:
Power Relay 24VDC 10A 3PDT39.4x35.7x50mm Socket
额定电压DC 32 V
额定电压AC 240 V
输入电压DC 24.0 V
触点类型 3PDT
功耗 1.2 W
触点额定电流 10 A
线圈电压 24 VDC
线圈电流 51 mA
线圈功率DC 1.20 W
线圈电阻 472 Ω
载流 10.0 A
额定电流Max 10 A
线圈电压DC 24 V
线圈功率 1.25 W
开关电流Max 10 A
额定电压DC Max 32 V
额定电压AC Max 240 V
安装方式 Plug In
引脚数 11
封装 -
长度 38.9 mm
宽度 35.7 mm
高度 48.4 mm
封装 -
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 70℃
产品生命周期 Active
包装方式 Tray, Box
制造应用 Industrial, Commercial, Robotics, Clock & Timing, HVAC, Medi
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
