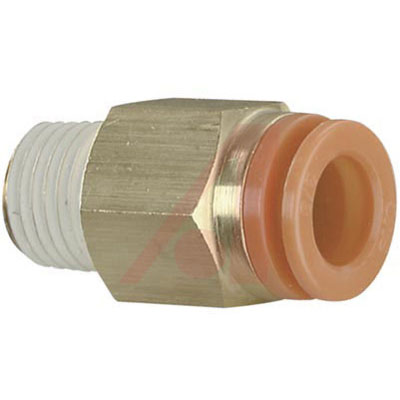

Connector, Pneumatics; 3/16in.; 10-32 UNF; 8mm Hex.; 2.5mm Min.; 24mm
"s one-touch fittings are designed for smooth insertion, excellent gripping and easy release. A special tube seal and a large tube insertion depth insure a positive seal against the tubing and help eliminate leakage. The fittings accept many types of thermoplastic tubing and are applicable for both vacuum and positive pressure applications. The o-ring and barbed design allows the fitting to rotate into the desired position upon installation. A wide selection of sizes, body styles and thread types are available. Also, available in inch and metric sizes.
* Easy to Install and Adjust to Proper Positioning
* Large Release Button for Easy Removal of Tubing
* Large Tube Insertion Depth Compensates for Unevenly Cut Tubing
* Special Tube Seal Design Provides Positive Sealing without Reduced Flow
* Stainless Steel Chuck for Smooth Insertion and Excellent Gripping SUS304
颜色 Orange
重量 6 g
Color Orange
Diameter, Hole 2.5 mm Min.
Diameter, Tube 3⁄16 "
Length, Overall 24 mm
Material, Body Brass
Material, Gasket PVC
Nut Size 8 mm Hex.
Operating Fluid Air, Water
Pressure, Operating 1.0 MPa Max.
Product Header KQ2 Series One-Touch Fittings
Proof Pressure 3.0 MPa
Series KQ2 Series
Size, Port 10-32 UNF
Size, Thread 10-32 UNF
Size, Tube 3/16 "
Standards RoHs Compliance, JIS B 0208 Mounting and Nut, ISO 16030
Temperature, Ambient, Maximum +60 °C
Temperature, Ambient, Minimum -5 °C
Thread Type UNF
Type Male Connector
Weight 6 g
RoHS标准 RoHS Compliant
