KO133A816概述

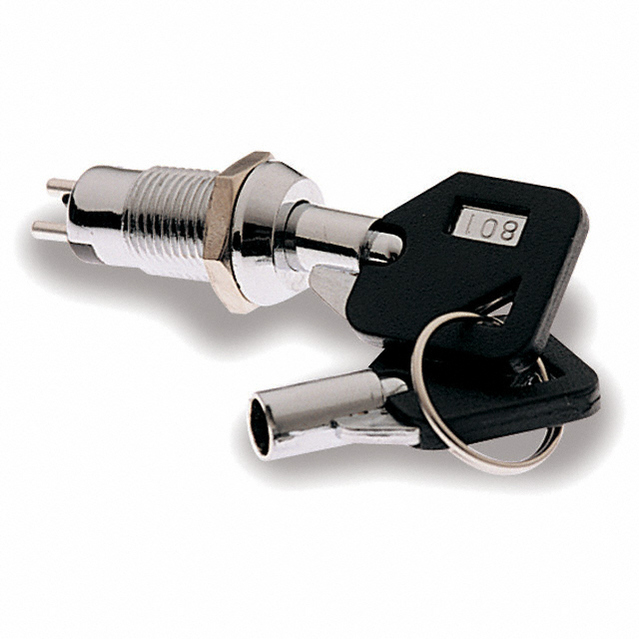

键锁开关 1A 125VAC .5A 250VAC Key Pull Pos. 1
is manufactured by and is categorized in the Keylock Switches category. KO133A816 is described as SWITCH KEYLOCK 2POS SPST 1A 125V. Perfect Parts is a supplier of Switches and other Electromechanicals.
贸泽:
键锁开关 1A 125VAC .5A 250VAC Key Pull Pos. 1
KO133A816中文资料参数规格
封装参数
安装方式 Panel, Solder Lug
其他
Series KO
Current-Rating 1A AC
Termination-Style Solder Lug
Mounting-Type Panel Mount
Features -
Circuit SPST
Voltage-Rating-AC 125V
Voltage-Rating-DC -
Actuator-Type Tubular Key
Contact-Material Copper Alloy
Contact-Finish Silver
Number-of-Positions 2
Panel-Cutout-Dimensions Circular - 12.00mm Dia
Switch-Function Off-On
Contact-Timing Not Specified
Key-Removable-Positions 1 only
Angle-of-Throw 90°
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
