L225J50RE

OHMITE  L225J50RE  通孔电阻器, L225系列, 50 ohm, 225 W, ± 5%, 4.595 kV

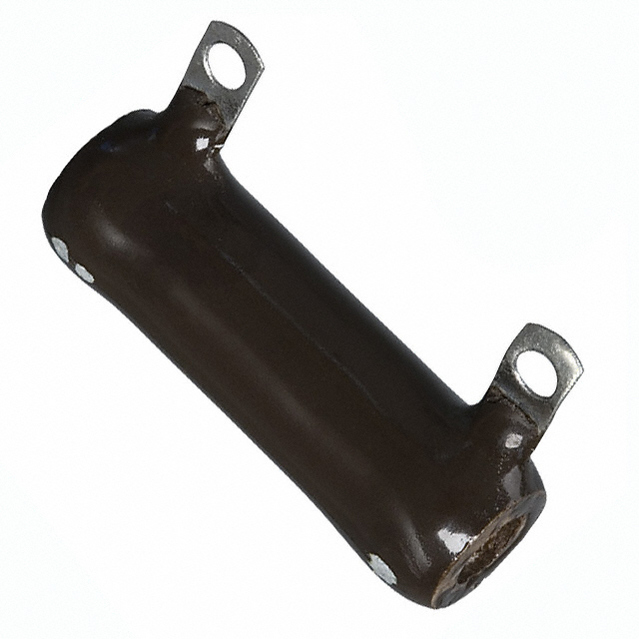

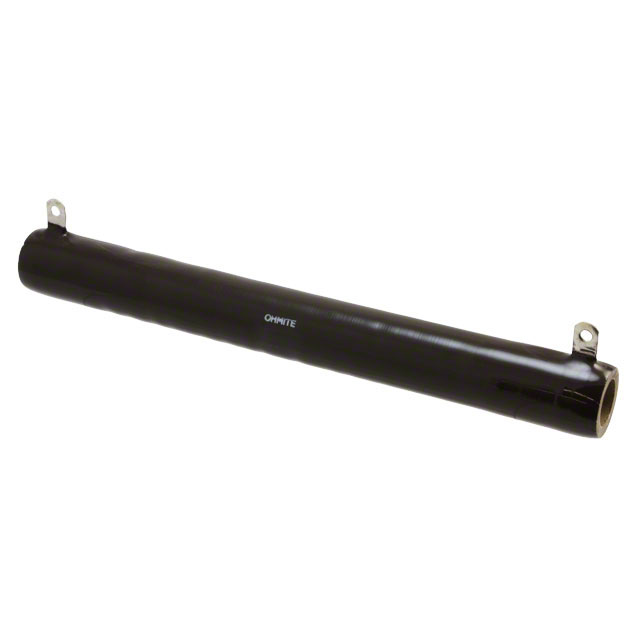

The is a Power Resistor with tubular ceramic core and solder coated radial lug terminals. This 225 series P-core code fixed resistor for applications requiring wattage rating 225 watts. This 270 type resistor is equipped with lug terminals suitable for soldering or sturdy bolt connection. When secure mounting is required, the hollow core of this resistor permits fastening with spring-type brackets, through bolts or through bolts with slotted-steel brackets. Suitable for rugged applications, the 270 type resistor features all-welded construction and durable lead-free vitreous enamel coating.

.

Terminals suitable for soldering or bolt connection

.

Flame-resistant coating

.

All-welded construction

.

3000VAC Dielectric withstanding voltage

Mounting brackets are not included.
