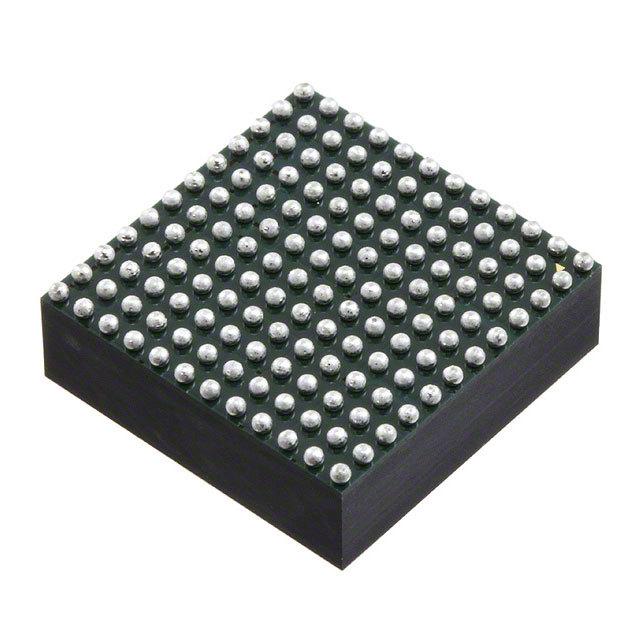

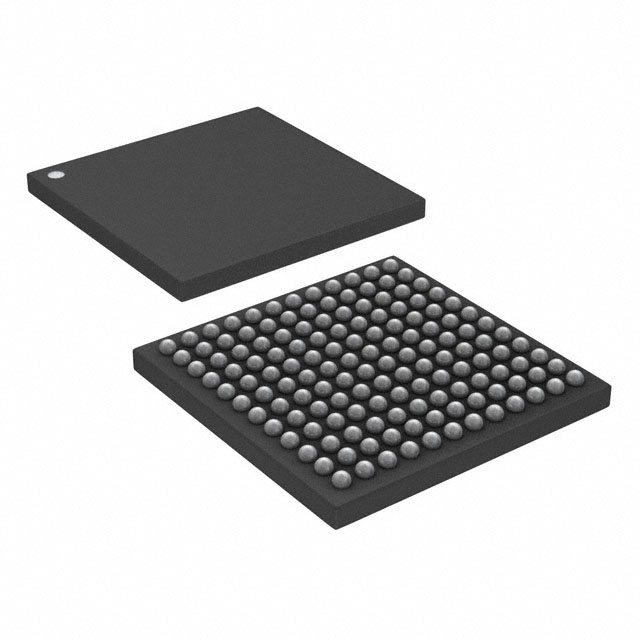

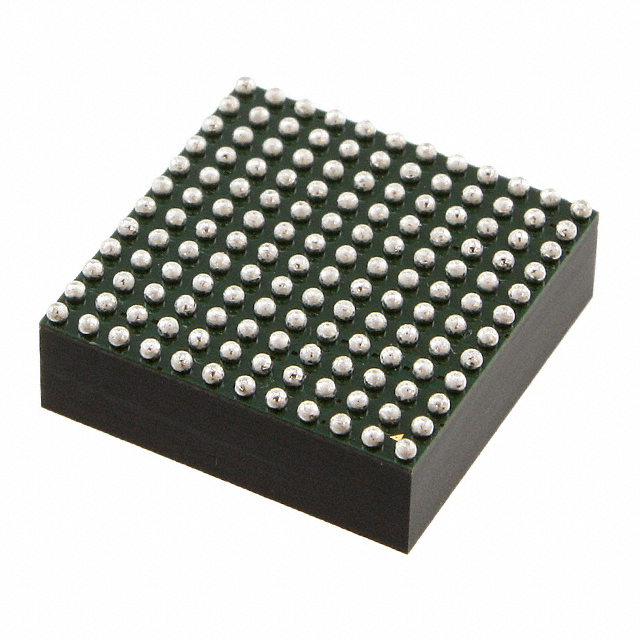

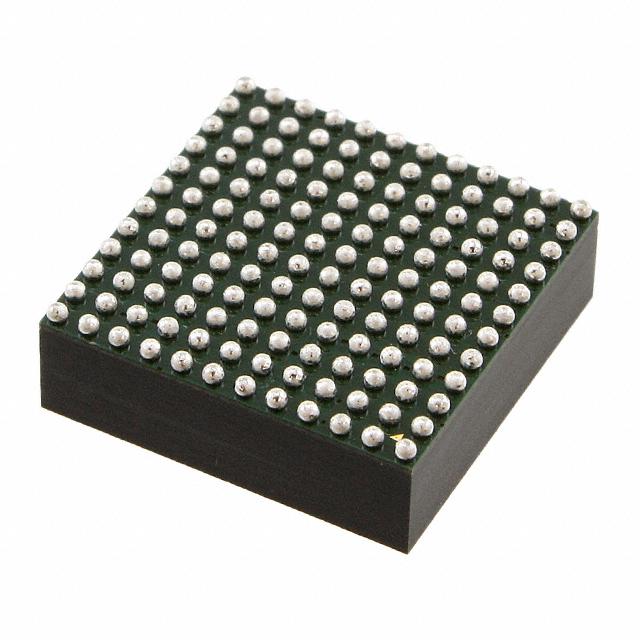

LTM4641IY#PBF

LINEAR TECHNOLOGY  LTM4641IY#PBF  芯片, 降压稳压器, 4.5-38V, 10A, 0.6-6V, 144BGA

The is a switch mode step-down DC/DC µModule® Regulator with advanced input and load protection features. Trip detection thresholds for the following faults are customizable - input undervoltage, over temperature, input overvoltage and output overvoltage. Select fault conditions can be set for latch-OFF or hysteretic restart response or disabled. Includes he switching controller and house-keeping ICs, power MOSFETs, inductor, overvoltage drivers, biasing circuitry and supporting components. Operating from input voltages of 4 to 38V, the device supports output voltages from 0.6 to 6V, set by an external resistor network remote sensing the point-of-load voltage. The LTM4641 high efficiency design can deliver up to 10A continuous current with a few input and output capacitors. The regulator constant on-time current mode control architecture enables high step-down ratios and fast response to transient line and load changes.

.

Differential remote sense amplifier for POL regulation

.

Internal temperature, analog indicator output

.

Overcurrent foldback and over temperature protection

.

Current mode control/fast transient response

.

Parallelable for higher output current

.

Selectable pulse-skipping operation

.

Soft-start/voltage tracking/pre-bias start-up

.

UVLO, Overvoltage shutdown and latch-OFF thresholds

.

N-Channel overvoltage crowbar/power-interrupt MOSFET driver

.

Surge stopper capable with few external components

.

Robust, resettable latch-OFF overvoltage protection

.

±1.5% Total DC output voltage error
