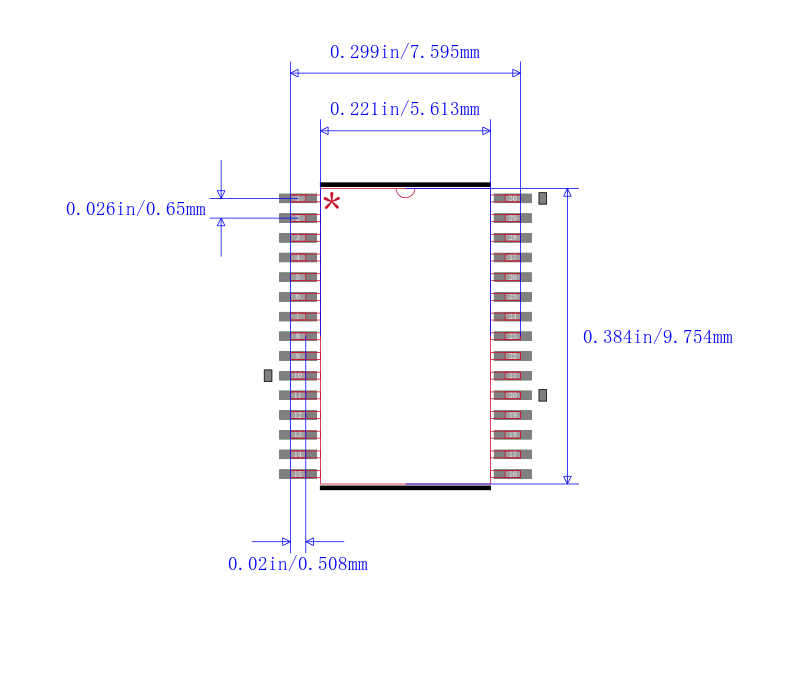

LC75814V-TLM-E

LCD 驱动器 LCD DISPLAY DRIVER

The LC75814V is a 1/4 duty general-purpose LCD driver that can be used for frequency display in electronic tuners under the control of a microcontroller. The LC75814V can drive an LCD with up to 64 segments directly. The LC75814V can also control up to 4 general-purpose output ports. Since the LC75814V uses separate power supply systems for the LCD drive block and the logic block, the LCD driver block power-supply voltage can be set to any voltage in the range 2.7 to 6.0 volts, regardless of the logic block power-supply voltage.

Features

---

 |

.

Support for 1/4 duty 1/2 bias or 1/4 duty 1/3 bias drive of up to 64 segments under serial data control.

.

Serial data input supports CCB format communication with the system controller.

.

Serial data control of the power-saving mode based backup function and all the segments forced off function

.

Serial data control of switching between the segment output port and the general-purpose output port functions

.

High generality, since display data is displayed directly without decoder intervention.

.

Independent VLCD for the LCD driver block.

VLCD can be set to any voltage in the range 2.7 to 6.0 volts, regardless of the logic block power-supply voltage.

.

The INH pin can force the display to the off state.

.

RC oscillator circuit
