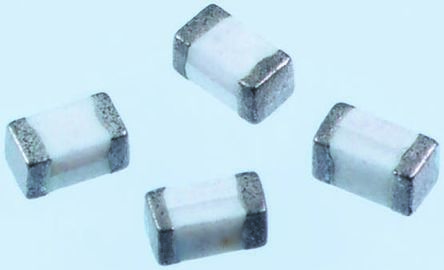

Murata 0402 LQQ15HS 系列高频片式电感器Murata LQGH15HS 电感器是通用多层贴片式电感器。 尽管 Q 系数比线绕等效产品低,在诸多产品中,其多层结构仍可在额定电流、尺寸和 L 值容差之间提供最优平衡。 LQGH15HS SMD 电感器高度可靠,且适用于扼流圈、WLAN 网络、射频电路匹配和移动通信设备谐振中的应用。可用于高频率电路 较低直流电阻使设备功耗更低 高频率时稳定 ### 表面安装 0402 电感器(扼流圈)
固定器
得捷:
FIXED IND 1NH 1A 70 MOHM SMD
立创商城:
1nH ±0.3nH 70mΩ
欧时:
### Murata 0402 LQQ15HS 系列高频片式电感器Murata LQGH15HS 电感器是通用多层贴片式电感器。 尽管 Q 系数比线绕等效产品低,在诸多产品中,其多层结构仍可在额定电流、尺寸和 L 值容差之间提供最优平衡。 LQGH15HS SMD 电感器高度可靠,且适用于扼流圈、WLAN 网络、射频电路匹配和移动通信设备谐振中的应用。可用于高频率电路 较低直流电阻使设备功耗更低 高频率时稳定 ![http://china.rs-online.com/largeimages/L0105849-10.jpg]http://china.rs-online.com/largeimages/L0105849-10.jpg ### 表面安装 0402 电感器(扼流圈)
艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this rf chip LQG15HS1N0S02D surface mount inductor from Murata is perfect for you! This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has an inductance of 1n H. This device utilizes multi-layer technology. This SMD inductor has a maximum DC current of 1 A with a maximum resistance of 70m Ohm. This product is 1.05 mm long, 0.55 mm tall and 0.55 mm deep. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 10G Hz.
安富利:
Ind RF Chip Multi-Layer 1nH 0.3nH 100MHz 8Q-Factor Air 300mA 0402 Paper T/R
Chip1Stop:
Inductor RF Chip Multi-Layer 1nH 0.3nH 100MHz 8Q-Factor Air 300mA 70mOhm DCR 0402 Paper T/R
TME:
Inductor: ceramic; SMD; 0402; 1nH; 1000mA; 0.07Ω; Q:8; ftest:100MHz
Verical:
Inductor RF Chip Unshielded Multi-Layer 0.001uH 0.3nH 100MHz 8Q-Factor Air 1A 0.07Ohm DCR 0402 T/R
儒卓力:
**LQG15HS 0,001uH 300mA 0,3nH MLT **
Win Source:
1nH Unshielded Multilayer Inductor 300mA 70 mOhm Max 0402 1005 Metric
额定电流 1 A
电感 1 nH
自谐频率 10 GHz
产品系列 LQG
屏蔽 No
电感公差 ±0.3 nH
测试频率 100 MHz
电阻DC) ≤70 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 70 mΩ

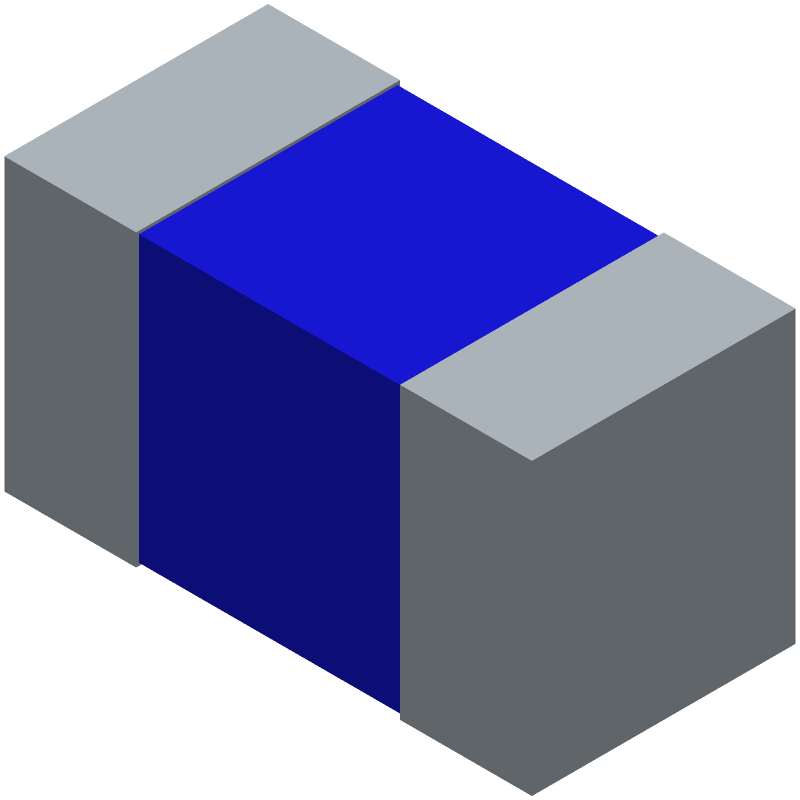

安装方式 Surface Mount
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.5 mm
封装公制 1005
封装 0402
重量 0.001 g
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LQG15HS1N0S02D muRata 村田 | 当前型号 | 当前型号 |
LQG15HN1N0S02D 村田 | 类似代替 | LQG15HS1N0S02D和LQG15HN1N0S02D的区别 |
