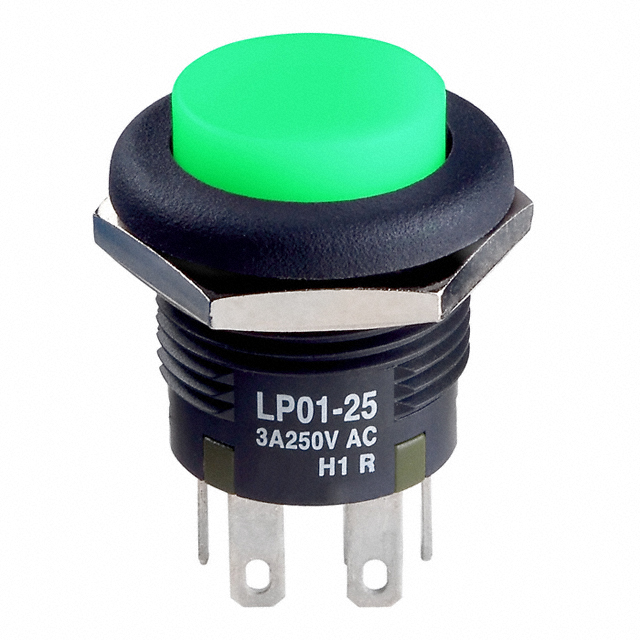

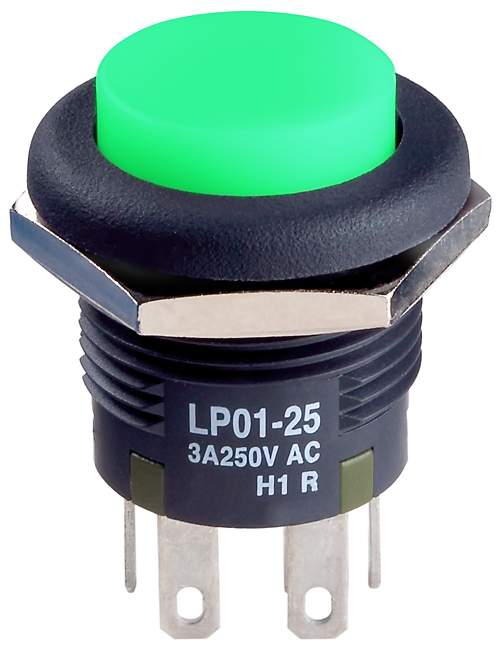

NKK SWITCHES LP0125CCKW015FB 按钮开关, 发光, DPDT, 3A, 绿色
Snap-In Mounting, LP01 Series Short Body Pushbutton Switchs
Smooth, slightly concave surface of cap designed to fit fingertip. Unique design and construction of cap prevents its removal and limits tampring.
立创商城:
LP0125CCKW015FB
e络盟:
按钮开关, 发光, DPDT, 3A, 绿色
艾睿:
This classic LP0125CCKW015FB push button switch from NKK Switches will do exactly what you need it to do by turning your circuit on and off. This device has a maximum current rating of 3 A @ 250VAC 30VDC. It has a DPDT configuration. This push switch has a minimum operating temperature of -10 °C and a maximum of 50 °C. The LP0125CCKW015FB push switch has a quick connect/solder lug termination style. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC. This product is 20 mm long, 26.8 mm tall and 20 mm deep.
Allied Electronics:
SHORT BODY PUSHBUTTON/ILLUMINATED/PANELMOUNT
Chip1Stop:
Switch Push Button ON ON DPDT Round Button 3A 250VAC 30VDC Momentary Contact Quick Connect/Solder Lug Panel Mount
Verical:
Switch Push Button ON ON DPDT Button 3A 250VAC 30VDC Quick Connect/Solder Lug
Newark:
# NKK SWITCHES LP0125CCKW015FB Illuminated Pushbutton Switch, DPDT, On-On, 3 A, 250 V, Green
Powell:
SHORT BODY PUSHBUTTON/ILLUMINATED/PANEL MOUNT
