用于射频个人通信的 3.6GHz/1.7GHz PLLatinum 双路高频合成器 20-ULGA -40 to 85
Using a proprietary digital-phase, locked-loop technique, the LMX243x devices generate very stable, low-noise control signals for RF and IF voltage controlled oscillators. Both the RF and IF synthesizers include a two-level programmable charge pump. Both the RF and IF PLLs have dedicated fastlock circuitry with integrated time-out counters which require only a single word write to power up or change frequencies.
The LMX243x devices are high-performance frequency synthesizers with integrated dual-modulus prescalers. A 32/33 or a 16/17 prescale ratio can be selected for the 5-GHz LMX2434 RF synthesizer. An 8/9 or a 16/17 prescale ratio can be selected for both the LMX2430 and LMX2433 RF synthesizers. The IF circuitry contains an 8/9 or a 16/17 prescaler.
Serial data is transferred to the devices through a three-wire interface DATA, LE, CLK. A low voltage logic interface allows direct connection to 1.8-V devices. Supply voltages from 2.25 V to 2.75 V are supported.
频率 3.6 GHz
电源电压DC 2.25V ~ 2.75V
输出接口数 2
供电电流 4.4 mA
电路数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.25V ~ 2.75V
电源电压Max 2.75 V
电源电压Min 2.25 V
安装方式 Surface Mount
引脚数 20

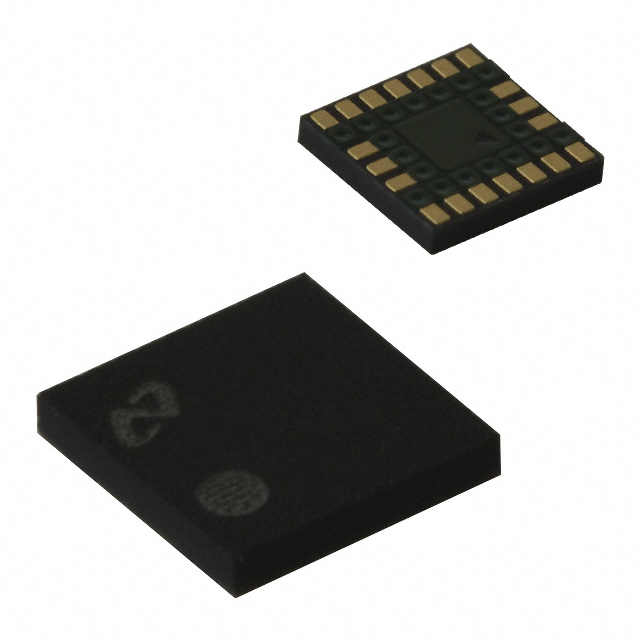

封装 UFLGA-20
封装 UFLGA-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
