LTC4365IDDB-1#TRMPBF

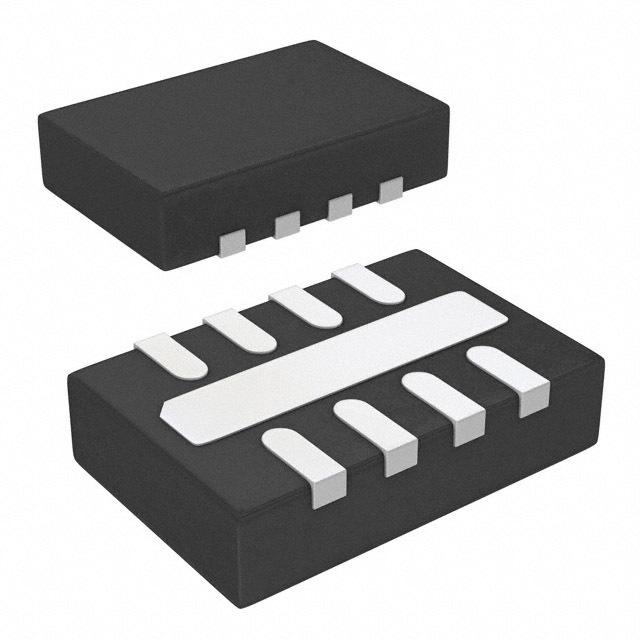

LINEAR TECHNOLOGY  LTC4365IDDB-1#TRMPBF  芯片, 电源保护控制, DFN-8

The is an overvoltage/undervoltage and reverse supply Protection Controller applicable where power supply input voltages may be too high, too low or even negative. It does this by controlling the gate voltages of a pair of external N-channel MOSFETs to ensure that the output stays within a safe operating range. The LTC4365 can withstand voltages between -40 and 60V and has an operating range of 2.5 to 34V, while consuming only 125µA in normal operation. Two comparator inputs allow configuration of the overvoltage OV and undervoltage UV set points using an external resistive divider. A shutdown pin provides external control for enabling and disabling the MOSFETs as well as placing the device in a low current shutdown state. A fault output provides status of the gate pin pulling low. A fault is indicated when the part is in shutdown or the input voltage is outside the UV and OV set points.

.

Adjustable undervoltage and overvoltage protection range

.

Charge pump enhances external N-channel MOSFET

.

10µA Low shutdown current

.

60V Overvoltage protection

.

-40V Reverse supply protection
