LQW2BASR39J00L

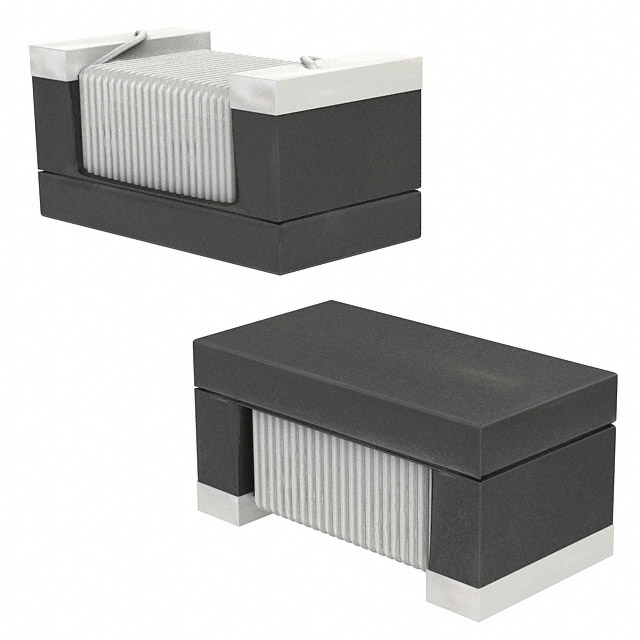

MURATA  LQW2BASR39J00L  表面贴装高频电感器, LQW2BA系列, 390 nH, ± 5%, 0805 [2012 公制], 600 MHz, 1.5 ohm

固定器

欧时:
### Murata 0805 LQW2BA 系列线绕电感器工作温度：-55→ +125°C 尺寸：2.09 x 1.53 x 1.42 mm 封装类型：0805 高 Q 型 UHF-SHF ### 表面安装 0805 电感器（扼流圈）

得捷:
FIXED IND 390NH 290MA 1.5OHM SMD

立创商城:
390nH ±5% 1.5Ω

e络盟:
MURATA  LQW2BASR39J00L  表面贴装高频电感器, LQW2BA系列, 390 nH, ± 5%, 0805 [2012 公制], 600 MHz, 1.5 ohm

艾睿:
This rf chip LQW2BASR39J00L surface mount inductor from Murata is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device is made with wirewound technology. This product is 2.29 mm long, 1.52 mm tall and 1.73 mm deep. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 600M Hz. This SMD inductor has a maximum DC current of 290m A with a maximum resistance of 1.5 Ohm. It has a tolerance of 5%. It has an inductance of 390n H.

安富利:
Ind RF Chip Wirewound 390nH 5% 100MHz 48Q-Factor 290mA 0805 Embossed T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.39uH 5% 100MHz 48Q-Factor Non Magnetic 0.29A 1.5Ohm DCR 0805 T/R

Win Source:
390nH Unshielded Wirewound Inductor 290mA 1.5 Ohm Max 0806 2015 Metric
