LT6203CDD#PBF

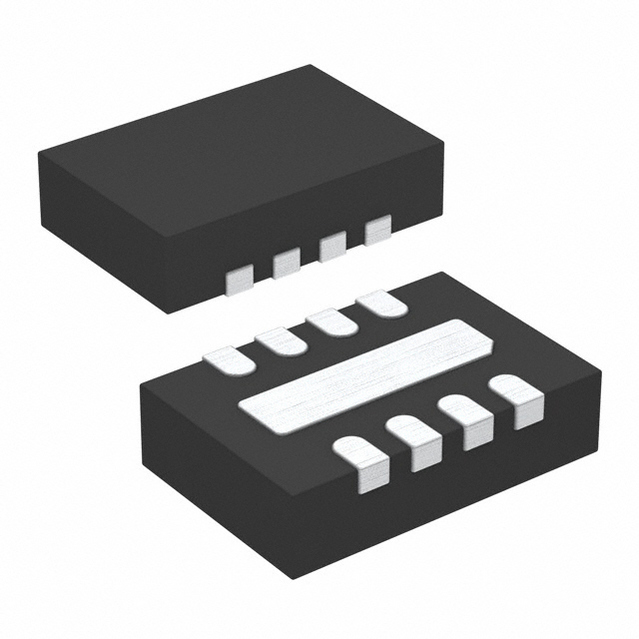

LINEAR TECHNOLOGY  LT6203CDD#PBF  运算放大器, 双路, 100 MHz, 2个放大器, 25 V/µs, 2.5V 至 12.6V, DFN, 8 引脚

The is a dual low noise rail-to-rail input and output unity gain stable Operational Amplifier that feature 1.9nV/√Hz noise voltage and draw only 2.5mA of supply current per amplifier. The amplifier combine very low noise and supply current with a 100MHz gain bandwidth product, a 25V/µs slew rate and are optimized for low supply signal conditioning systems. The amplifier maintain their performance for supplies from 2.5 to 12.6V and are specified at 3, 5 and ±5V supplies. Harmonic distortion is less than -80dBc at 1MHz making these amplifiers suitable in low power data acquisition systems. The devices can be used as plug-in replacements for many op amps to improve input/output range and noise performance.

.

3mA/amplifier Maximum low supply current

.

-80dB at 1MHz Low distortion

.

500µV Maximum low offset voltage

.

Input common mode range includes both rails

.

90dB Typical common mode rejection ratio

.

Unity gain stable

.

1.1pA/√Hz Low noise current

.

30mA Minimum output current
