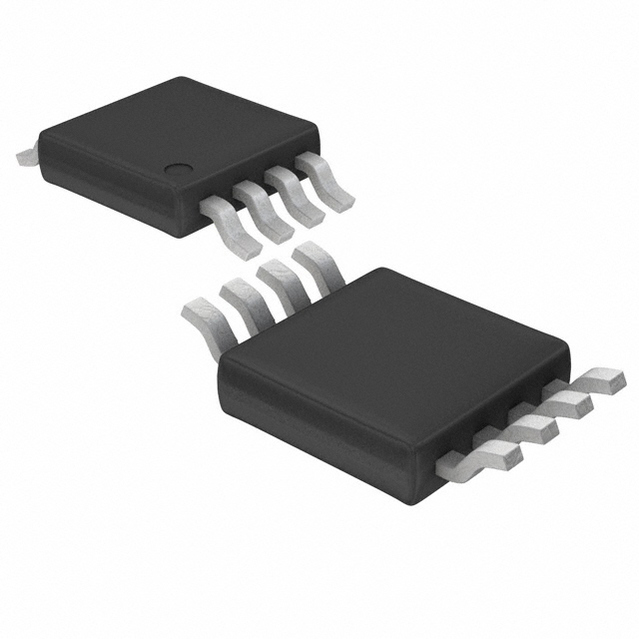

LT1819IMS8图片1
LT1819IMS8图片2
LT1819IMS8图片3
LT1819IMS8概述

高速运算放大器 LT1819 - 400MHz, 2500V/++s, 9mA Dual Operational Amplifiers

DESCRIPTION

The LT®1818/LT1819 are single/dual wide bandwidth, high slew rate, low noise and distortion operational amplifiers with excellent DC performance. The LT1818/LT1819 have been designed for wider bandwidth and slew rate, much lower input offset voltage and lower noise and distortion than devices with comparable supply current. The circuit topology is a voltage feedback amplifier with the excellent slewing characteristics of a current feedback amplifier.

FEATURES

400MHz Gain Bandwidth Product

2500V/μs Slew Rate

–85dBc Distortion at 5MHz

9mA Supply Current Per Amplifier

Space Saving SOT-23 and MS8 Packages

6nV/√Hz Input Noise Voltage

Unity-Gain Stable

1.5mV Maximum Input Offset Voltage

8μA Maximum Input Bias Current

800nA Maximum Input Offset Current

40mA Minimum Output Current, VOUT = ±3V

±3.5V Minimum Input CMR, VS = ±5V

Specified at ±5V, Single 5V Supplies

Operating Temperature Range: –40°C to 85°C

APPLICATIONS

Wideband Amplifiers

Buffers

Active Filters

Video and RF Amplifi cation

Communication Receivers

Cable Drivers

Data Acquisition Systems

LT1819IMS8中文资料参数规格
技术参数

电路数 2

通道数 2

转换速率 2.50 kV/μs

增益频宽积 400 MHz

增益带宽 400 MHz

封装参数

安装方式 Surface Mount

引脚数 8

封装 MSOP-8

外形尺寸

封装 MSOP-8

其他

产品生命周期 Unknown

包装方式 Tube

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

海关信息

ECCN代码 EAR99

数据手册

LT1819IMS8引脚图与封装图

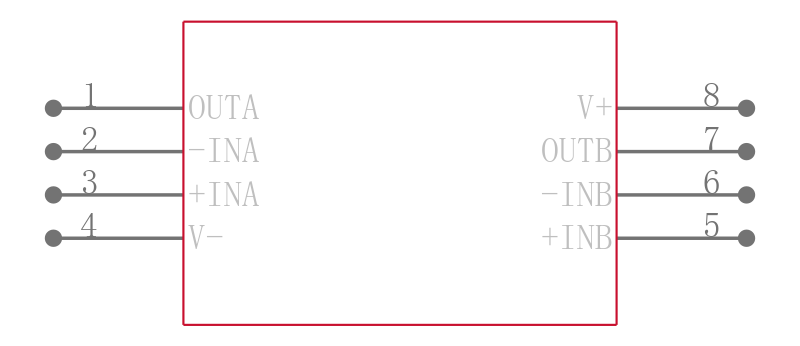

LT1819IMS8引脚图

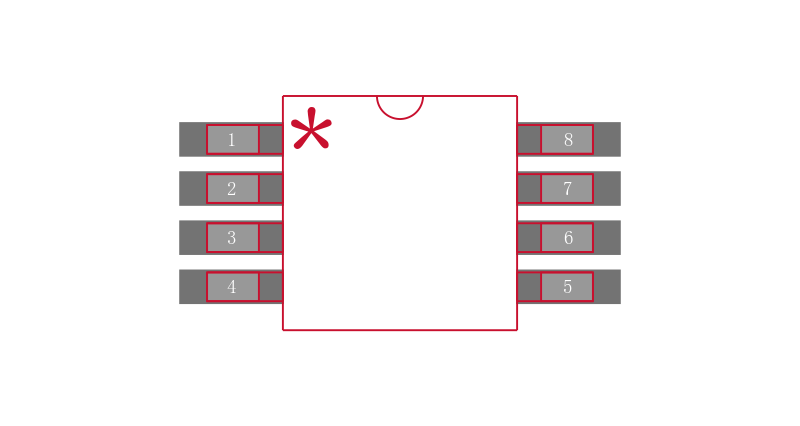

LT1819IMS8封装图
LT1819IMS8封装焊盘图
