限位开关 SIDE ROTARY SCRW TRM SPDT On-Mom
Switch Limit N.O./N.C. SPDT Side Rotary Conduit 20A 600VAC 250VDC Rotary Screw Mount Automotive
贸泽:
限位开关 SIDE ROTARY SCRW TRM SPDT On-Mom
艾睿:

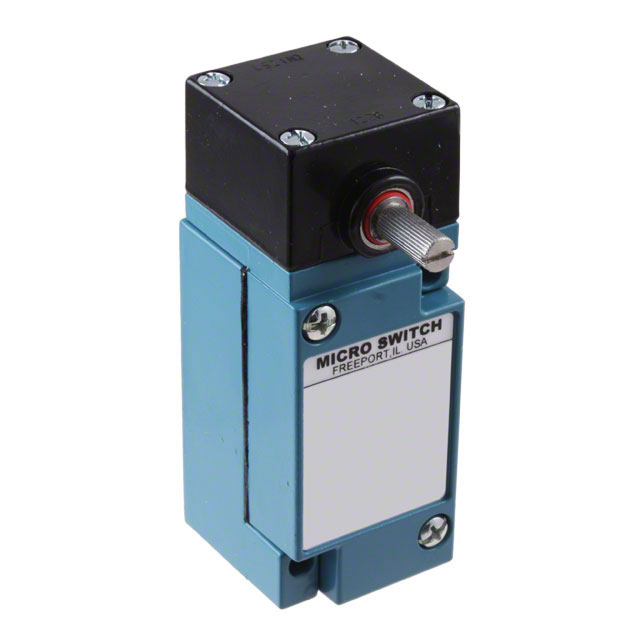

The heavy duty LSQ300 limit switch from Honeywell can provide your processor with information on the location or motion of the device based on electro-mechanical connections. This device has a maximum current rating of 20 A @ 120VAC. It has a SPDT configuration. LSQ300 is housed in zinc die cast. The LSQ300 limit switch has a conduit termination style. The maximum AC voltage rating is 600 VAC and the maximum DC voltage rating is 250 VDC. This product is 41.15 mm long, 106.78 mm tall and 61.9 mm deep.
Verical:
Switch Limit N.O./N.C. SPDT Side Rotary Conduit 20A 600VAC 250VDC Rotary Screw Mount Automotive
MASTER:
MICRO SWITCH™ Heavy-Duty Limit Switches: HDLS Series, Epoxy-Coated Zinc Housing, Side Rotary, Maintained, Alternate Action every 90°No Lever, Low Temperature Fluorosilicone Sealed, 1NC 1NO Single Pole Double Throw SPDT Snap Action, Double Break, AC 15,
Online Components:
Switch Limit N.O./N.C. SPDT Side Rotary Conduit 20A 600VAC 250VDC Rotary Screw Mount Automotive
Electro Sonic:
MICRO SWITCH™ Heavy-Duty Limit Switches: HDLS Series, Epoxy-Coated Zinc Housing, Side Rotary, Maintained, Alternate Action every 90°No Lever, Low Temperature ...
