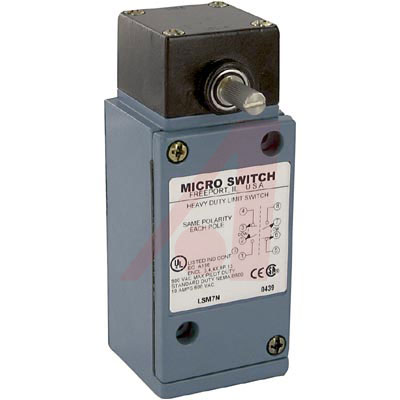

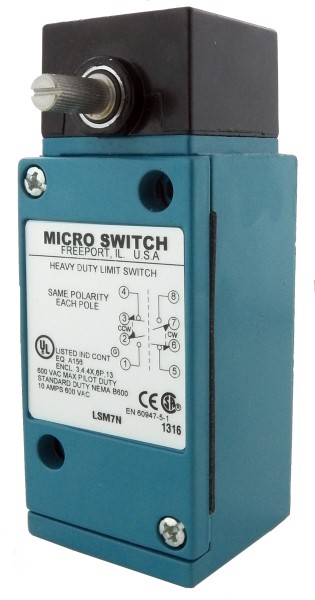

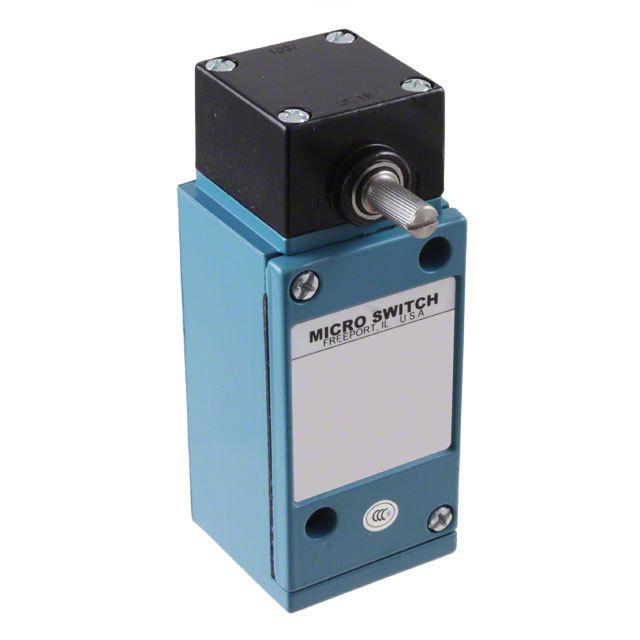

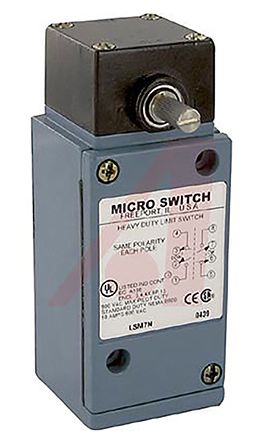

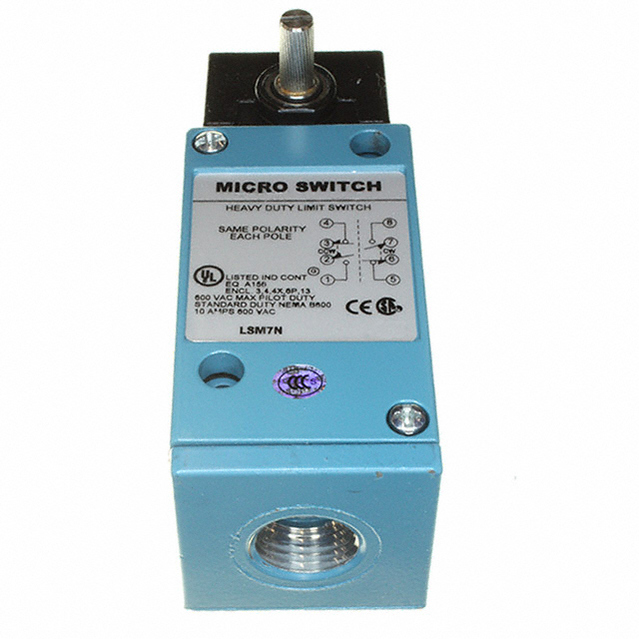

LSM7N

HONEYWELL  LSM7N  预接线限位开关

HDLS 系列限位

HDLS 系列开关包含一个“boss-and-socket”头部，设计用于将头部牢固地固定到主体；独特的全金属驱动链提供一致的操作特性（即使在高温条件下）；自提升压力板端子可节省接线时间。

坚固外壳，静电环氧表面

操作端可旋转 90°

10 A

可修改侧面旋转样式，以用于顺时针和/或逆时针操作

应用包括食品和饮料、材料处理和传送设备

### 认可

UL, CSA, CE, CCC

欧时:
Limit Switch Side Rotary No Lever

得捷:
SWITCH SNAP ACTION DPDT 10A 120V

e络盟:
预接线限位开关

艾睿:
Thanks to Honeywell and their heavy duty LSM7N limit switch, your microprocessor-based circuit can process information based on the switch&s;s position relative to the device itself. This device has a maximum current rating of 10 A @ 24VDC. It has a DPDT configuration. LSM7N is housed in zinc die cast. This limit switch has a minimum operating temperature of -1 °C and a maximum of 121 °C. The LSM7N limit switch has a conduit termination style. The maximum DC voltage rating is 24 VDC. This product is 47.8 mm long, 119.1 mm tall and 62 mm deep.

Allied Electronics:
Limit Switch, Rotary Actuated, 10A, DPDB, Cnt Neutral, Momentary

Verical:
Switch Limit N.O./N.C. DPDT Side Rotary Conduit 10A 24VDC Rotary Screw Mount Automotive

Newark:
# HONEYWELL  LSM7N  Limit Switch, Side Rotary, DPST-NO, DPST-NC, 10 A, 600 V, 0.45 N

MASTER:
MICRO SWITCH™ Heavy-Duty Limit Switches: HDLS Series, Epoxy-Coated Zinc Housing, Side Rotary, Momentary Center Neutral, No Lever, 2NC 2NO Double Pole Double Throw DPDT Snap Action, Double Break, AC 15, A600; DC 13, R300, 0.5 in - 14 NPT Conduit, Non Plu

Online Components:
This center neutral Side Rotary Switch from Honeywell comes from their MICRO SWITCH HDLS Series of Heavy-Duty Limit Switches. The ...

Electro Sonic:
MICRO SWITCH™ Heavy-Duty Limit Switches: HDLS Series, Epoxy-Coated Zinc Housing, Side Rotary, Momentary Center Neutral, No Lever, 2NC 2NO Double ...
