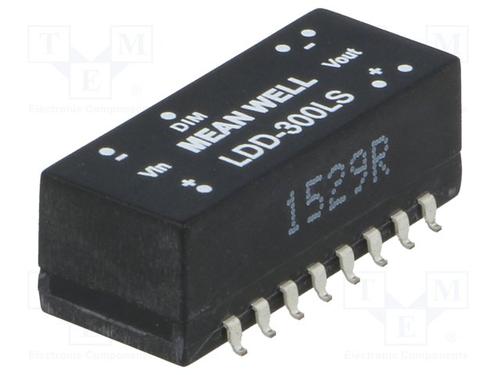

LED DRVR 12V/15V/18V/24V 16Pin SMD
* Wide Input and Output Range
* Remote ON/OFF Control
* PWM Dimming
* Short Circuit and Over Temperature Protection
* Complies with EN55015 and FCC part 15 without Additional Input Filter and Capacitors
* Fully Encapsulated IP67 for Solder Pin and Leadwire Types
* Flame Retardant UL94V-0 Plastic Case
* 3-Year Warranty
得捷:
LED DRIVER CC BUCK 2-28V 300MA
艾睿:
LED DRVR 12V/15V/18V/24V 16-Pin SMD
Allied Electronics:
Power Supply; DC-DC; 28V@0.3A; 9-32VIn; Encapsulated; Surface Mnt; LED Drvr; LDD Series
安富利:
LED DRVR Module 1-CH PWM IP67 28V 0.3A
TME:
Converter: DC/DC; 8W; Uin:9÷32V; Uout:2÷28VDC; Iin:300mA; 3.4g
CDI:
DC-DC 300mA CC IP67 Dimmable Step-Down LED Driver w SMD Style
额定功率 8 W
输出接口数 1
输出电压 28 VDC
输出电流 300 mA
通道数 1
输入电流 300 mA
输出功率 8.4 W
输入电压Max 32 V
输入电压Min 9 V
输入电压DC Max 32 V
输入电压DC Min 9 v
输出电压Max 28 V
输出电压Min 2 V
输出电流Max 300 mA
输入电压 9VDC ~ 32VDC
安装方式 Surface Mount
引脚数 16
封装 SMD-16
封装 SMD-16
重量 3.4 g
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 无铅
