LM317LZ-AP

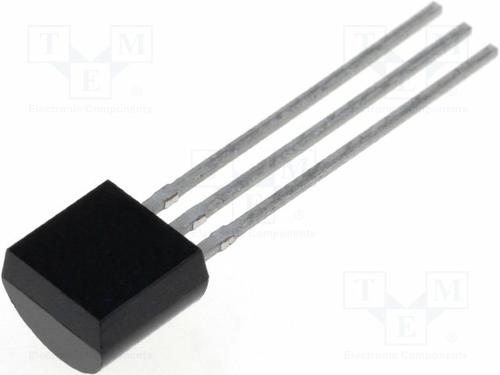

LM317 系列 1.2 V 100 mA 正电压 可调 稳压器 - TO-92

Description

The LM217L/LM317L are monolithic integrated circuits in SO-8 and TO-92 packages intended for use as positive adjustable voltage regulators. They are designed to supply up to 100 mA of load current with an output voltage adjustable over a 1.2 to 37 V range.The nominal output voltage is selected by means of only a resistive divider, making the device exceptionally easy to use and eliminating the stocking of many fixed regulators.

Features

• Outuput voltage range: 1.2 to 37 V

• Output current up to 100 mA

• Line regulation typ. 0.01%

• Load regulation typ. 0.1%

• Thermal overload protection

• Short-circuit protection

• Output transition safe area compensation

• Floating operation for high voltage applications
