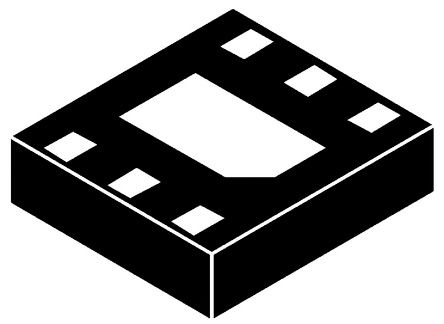

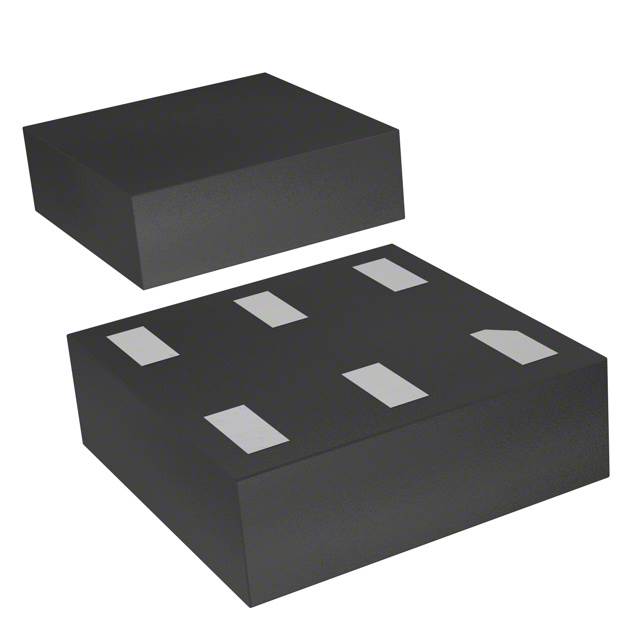

STMICROELECTRONICS LDK130PU-R 电压稳压器, LDO, 可调, 1.9V至5.5V输入, 200mV压差, 800mV, 0.3A输出, DFN-6
LDO(低压降)线性稳压器,STMicroelectronics,250mA 至 500mA
得捷:
IC REG LINEAR POS ADJ 300MA 6DFN
立创商城:
正 Vin=5.5V Vout=0.8V~5.1V 300mA 55dB@120Hz~10kHz
欧时:
STMicroelectronics LDK130PU-R LDO 稳压器, 可调输出, 0.8 → 5 V输出, 300mA最大输出, ±3%精确度
贸泽:
低压差稳压器 300mA current very low noise LDO
e络盟:
电压稳压器, LDO, 可调, 1.9V至5.5V输入, 200mV压差, 800mV, 0.3A输出, DFN-6
艾睿:
This LDO LDK130PU-R linear regulator developed by STMicroelectronics keeps the power stable! Its typical dropout voltage at current is 0.1@100mA|0.2@300mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.3 A. This will operate at a minimum voltage of 1.9 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 0.8Min V, this is power management at its best. A load regulation of 0.006%/mATyp and line regulation of 0.05%/VTyp is necessary for providing a constant voltage level at your output. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.4@300mA V.
安富利:
LDO Regulator Pos 0.8V 0.3A 6-Pin VFDFPN T/R
富昌:
LDK130 Series 0.3 A ADJ Output Low Noise LDO Voltage Regulator - DFN-6 1.2x1.3
Chip1Stop:
LDO Regulator Pos 0.8V 0.3A 6-Pin DFN T/R
Verical:
LDO Regulator Pos 0.8V 0.3A 6-Pin DFN T/R
儒卓力:
**LDO VREG ADJ. 0.3A DFN1.2X1.3 **
容差 2 %
输出接口数 1
输出电压 0.8V ~ 5.3V
输出电流 300 mA
供电电流 60µA ~ 120µA
针脚数 6
静态电流 30 µA
跌落电压 200 mV
输入电压Max 5.5 V
输入电压Min 1.9 V
输出电压Max 5.1 V
输出电压Min 800 mV
输出电流Max 300 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 5.5 V
安装方式 Surface Mount
引脚数 6
封装 DFN-6
长度 1.3 mm
宽度 1.2 mm
高度 0.45 mm
封装 DFN-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
