STMICROELECTRONICS LDK120PU10R 固定电压稳压器, LDO, 1.9V至5.5V, 150mV压差, 1V输出, 200mA输出, DFN-6
LDO(低压降)线性电压调节器,STMicroelectronics,150mA 至 200mA
得捷:
IC REG LINEAR 1V 200MA 6DFN
欧时:
### LDO(低压降)线性电压调节器,STMicroelectronics,150mA 至 200mA### LDO(低压降)线性电压调节器,STMicroelectronics低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
e络盟:
固定电压稳压器, LDO, 1.9V至5.5V, 150mV压差, 1V输出, 200mA输出, DFN-6
艾睿:
Never worry about components not turning off and on due to lack of voltage with this LDO LDK120PU10R linear regulator from STMicroelectronics. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.1@100mA|0.15@200mA V. This voltage regulation device&s;s single output can produce a current up to 0.2 A. Using the part will provide the power your application needs by requiring a voltage only of 1.9 V and not exceeding a voltage of 5.5 V. With a fixed output that has a voltage of 1 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 0.006%/mATyp and line regulation of 0.05%/VTyp. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.3@200mA V.
安富利:
LDO Regulator Pos 1V 0.2A 6-Pin DFN T/R
富昌:
LDK220 系列 1.9 至 5.5 Vin 200 mA 1 Vout LDO 线形 稳压器 - DFN-6
Chip1Stop:
LDO Regulator Pos 1V 0.2A 6-Pin DFN T/R
Verical:
LDO Regulator Pos 1V 0.2A 6-Pin DFN T/R
输出接口数 1
输出电压 1 V
输出电流 200 mA
供电电流 60µA ~ 100µA
针脚数 6
静态电流 100 µA
跌落电压 150 mV
输入电压Max 5.5 V
输入电压Min 1.9 V
输出电压Min 1 V
输出电流Max 200 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 1.9V ~ 5.5V
安装方式 Surface Mount
引脚数 6

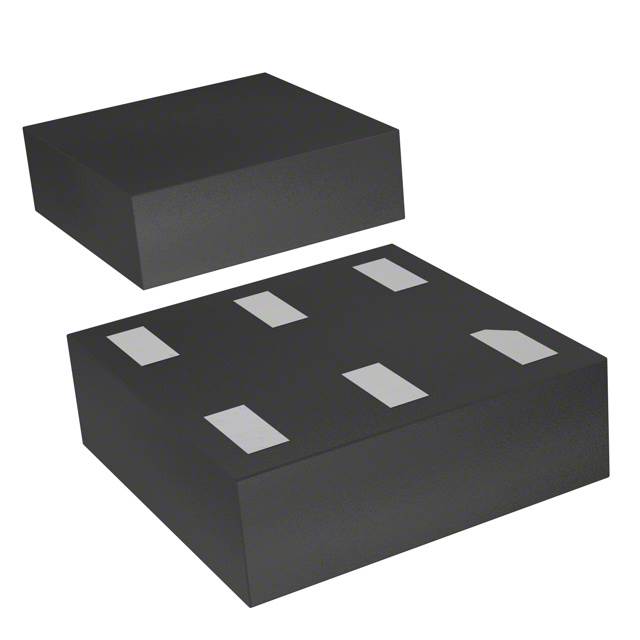

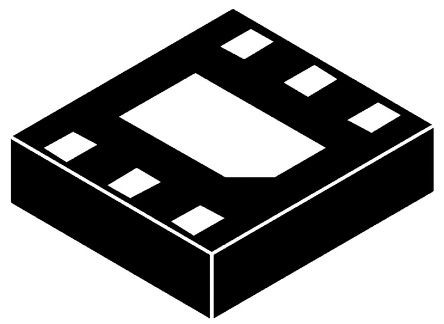

封装 DFN-6
长度 1.3 mm
宽度 1.2 mm
高度 0.45 mm
封装 DFN-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
