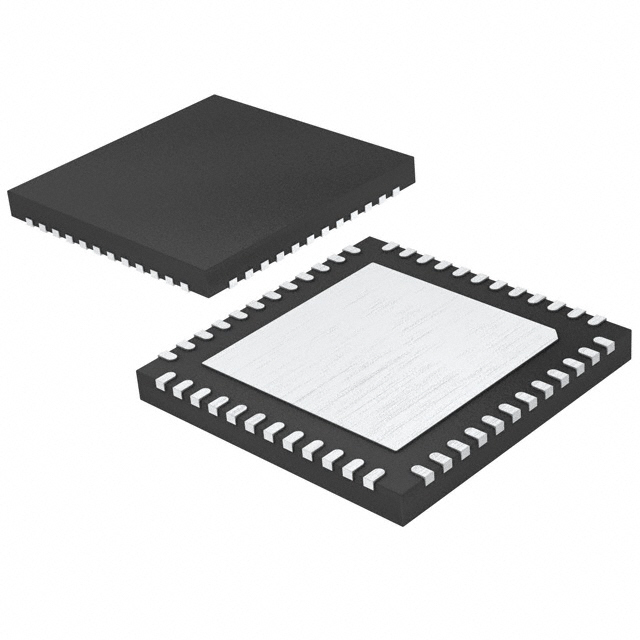

LINEAR TECHNOLOGY LTC2269IUK#PBF 模数转换器, 16 bit, 20 MSPS, 单, 1.7 V, 1.9 V, QFN
Need to process and covert your analog signals into digital data? This ADC from does just that! Its maximum power dissipation is 184 mW. It has a differential input signal. This device"s digital interface is parallel|serial spi|lvds. This ADC has a resolution of 16bit. This ADC has an input voltage of 1 Vp-p/2.1Vp-p. This ADC has a temperature range of -40 °C to 85 °C.
电源电压DC 1.70V min
供电电流 48.9 mA
电路数 1
针脚数 48
位数 16
耗散功率 161 mW
采样率 20 Msps
模数转换数ADC 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 184 mW
输入通道数 1
电源电压 1.7V ~ 1.9V
电源电压Max 1.9 V
电源电压Min 1.7 V
引脚数 48
封装 QFN-48
封装 QFN-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 3A991.c.4
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC2269IUK#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC2269CUK#PBF 凌力尔特 | 类似代替 | LTC2269IUK#PBF和LTC2269CUK#PBF的区别 |
