LM4040BIM3-2.0

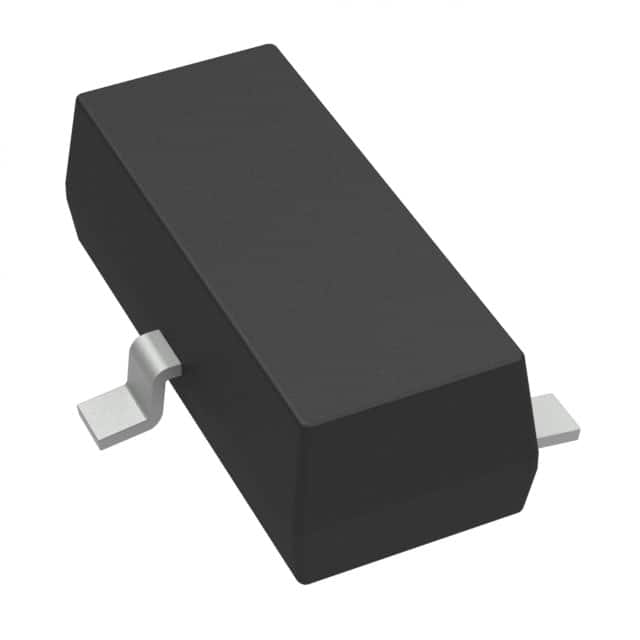

LM4040BIM3-2.0图片1
LM4040BIM3-2.0图片2
LM4040BIM3-2.0图片3
LM4040BIM3-2.0概述

V-Ref Precision 2.048V 15mA 3Pin SOT-23 T/R

DESCRIPON

Ideal for space critical applications, the LM4040-N precision voltage reference is available in the subminiature SC70 and SOT-23 surface-mount package. The LM4040-N"s advanced design eliminates the need for an external stabilizing capacitor while ensuring stability with any capacitive load, thus making the LM4040-N easy to use. Further reducing design effort is the availability of several fixed reverse breakdown voltages: 2.048V, 2.500V, 3.000V, 4.096V, 5.000V, 8.192V, and 10.000V. The minimum operating current increases from 60 μA for the 2.5-V LM4040-N to 100 μA for the 10.0-V LM4040-N. All versions have a maximum operating current of 15 mA.

FEATURES

• 2.5V/SOT-23 AEC Q-100 Grades 1 and 3 available

• Small Packages: SOT-23, TO-92 and SC70

• No Output Capacitor Required

• Tolerates Capacitive Loads

• Fixed Reverse Breakdown Voltages of 2.048V, 2.500V,3.000V, 4.096V, 5.000V, 8.192V, and 10.000V

APPLICATIONS

• Portable, Battery-Powered Equipment

• Data Acquisition Systems

• Instrumentation

• Process Control

• Energy Management

• Product Testing

• Automotive

• Precision Audio Components

LM4040BIM3-2.0中文资料参数规格
技术参数

容差 ±0.2 %

输出电流 15 mA

输出电压Min 2.048 V

封装参数

安装方式 Surface Mount

引脚数 3

封装 SOT-23-3

外形尺寸

封装 SOT-23-3

物理参数

工作温度 -40℃ ~ 85℃ TA

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Cut Tape CT

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

LM4040BIM3-2.0引脚图与封装图
LM4040BIM3-2.0引脚图
LM4040BIM3-2.0封装图
LM4040BIM3-2.0封装焊盘图
在线购买LM4040BIM3-2.0
型号: LM4040BIM3-2.0
制造商: TI 德州仪器
描述:V-Ref Precision 2.048V 15mA 3Pin SOT-23 T/R
替代型号LM4040BIM3-2.0
型号/品牌 代替类型 替代型号对比

LM4040BIM3-2.0

TI 德州仪器

当前型号

当前型号

LM4040B20IDBZR

德州仪器

完全替代

LM4040BIM3-2.0和LM4040B20IDBZR的区别

LM4040BIM3-2.0/NOPB

德州仪器

完全替代

LM4040BIM3-2.0和LM4040BIM3-2.0/NOPB的区别

TL431AQDBZR

恩智浦

功能相似

LM4040BIM3-2.0和TL431AQDBZR的区别
