具有集成低压降稳压器和启动模式的降压直流/直流转换器 9-DSBGA -30 to 125
Easy power control is made possible with this false pin count power management IC by Texas Instruments. This power management IC has an input voltage of 2.7 to 5.5 V. Its switching regulator has a frequency of 1800Min kHz. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This power management IC has a minimum operating temperature of -30 °C and a maximum of 125 °C.
频率 1.80 MHz
电源电压DC 5.50 V
输出接口数 2
输出电压 1.80 V
输出电流 750 mA
静态电流 10.0 µA
跌落电压 82.0 mV
调节输出数 3
开关频率 1.8 MHz
拓扑结构 Buck
工作温度Max 125 ℃
工作温度Min -30 ℃
电源电压 2.7V ~ 5.5V
安装方式 Surface Mount
引脚数 9

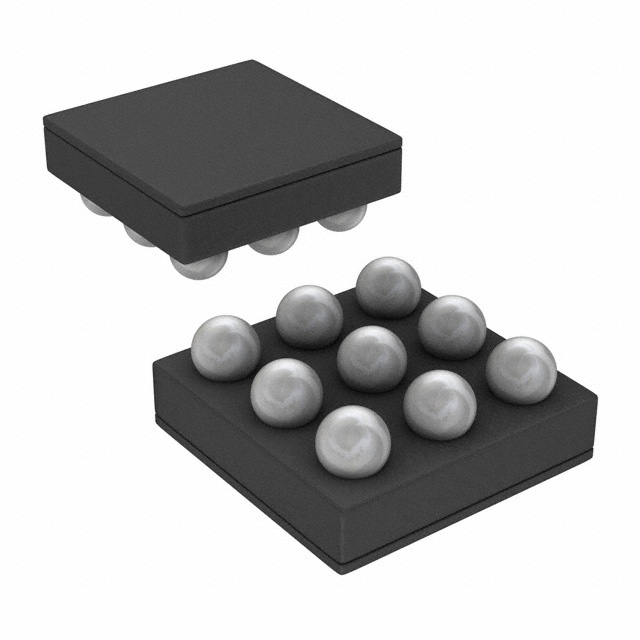

封装 WFBGA-9
封装 WFBGA-9
工作温度 -30℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
