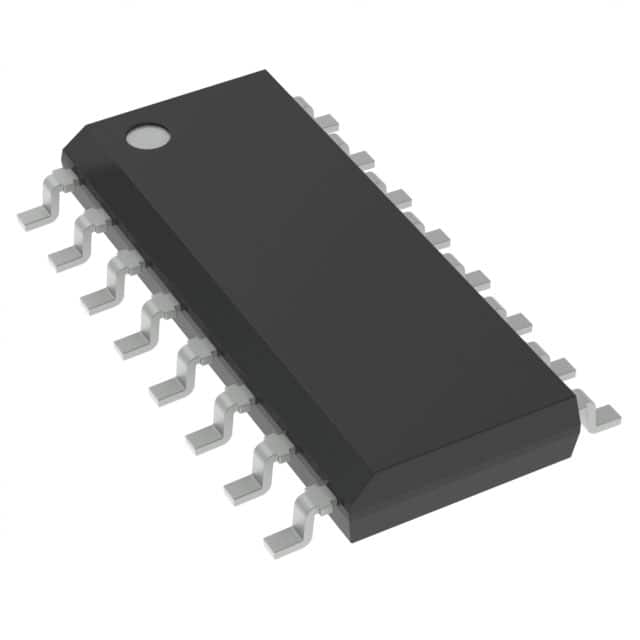

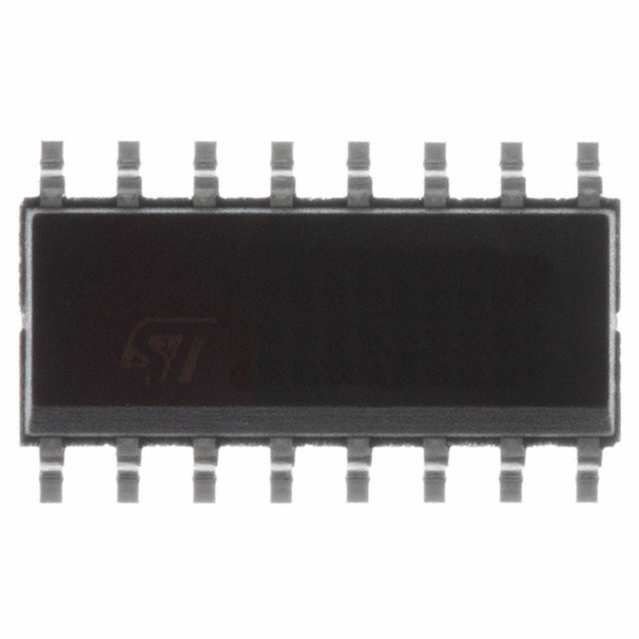

L6725A 系列 18 V 10 mA PWM 降压控制器 表面贴装 - SOIC-16N
Do you have to step up or down from one voltage level to another? The STMicroelectronics step down DC voltage controller gives you the ability to do just that. Its output produces a current of 30Max A. This DC voltage controller has single output. With an output that has a voltage of 0.6 to 18 V, this is power management at its best. This DC voltage controller has an input voltage of 1.8 to 18 V. You can operate this at a switching frequency of 500 kHz. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 85 °C.
输出接口数 1
输出电压 0.6V ~ 18V
输出电流 30 A
开关频率 250kHz, 500kHz
占空比 100 %
输入电压Max 18 V
输入电压Min 1.8 V
输出电流Max 30 A
最大占空比 100 %
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 18V
输入电压 4.5V ~ 18V
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
高度 1.6 mm
封装 SOIC-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
