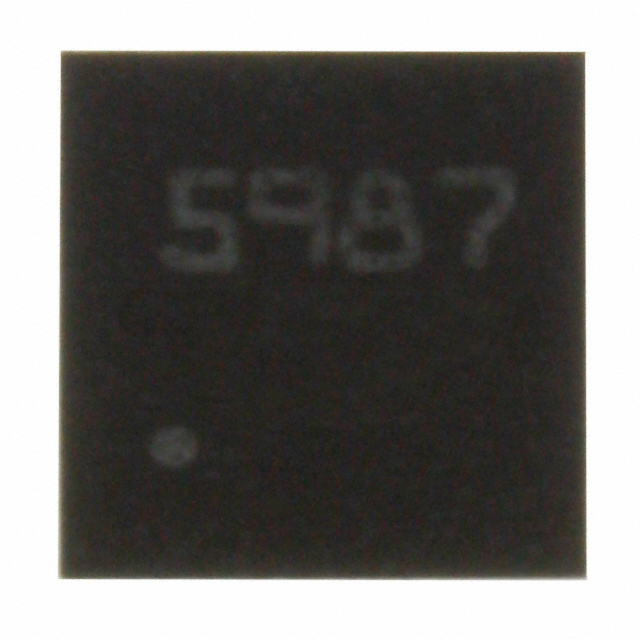

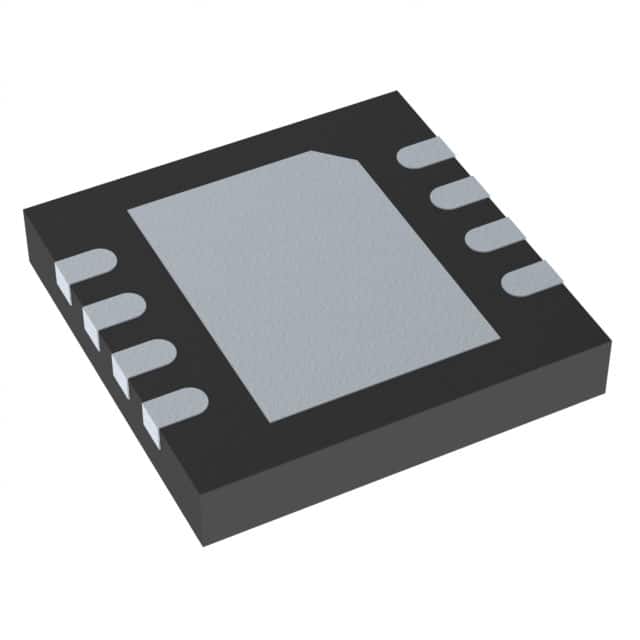

L5987 250 kHz至1 MHz 降压 开关稳压器 - VFQFPN-8封装
Adjust the voltage level of your devices with this step down DC to DC converter from STMicroelectronics. This converter"s single output can produce a current up to 3Typ A. With a small input voltage of 2.9 V and a max of 18 V, this will supply sufficient power to your circuit. With an adjustable output that has a voltage of 0.6 to 18 V, this is power management at its best. You can operate this at a switching frequency of 225 to 275 kHz. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This converter has an operating temperature range of -40 °C to 150 °C.
输出接口数 1
输出电压 0.6V ~ 18V
输出电流 3 A
开关频率 250kHz ~ 1MHz
输入电压Max 18 V
输入电压Min 2.9 V
输出电压Max 18 V
输出电压Min 0.6 V
输出电流Max 3 A
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压 2.9 V
输入电压 2.9V ~ 18V
安装方式 Surface Mount
引脚数 8
封装 VFQFPN-8
封装 VFQFPN-8
工作温度 -40℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
L5987TR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
L5987 意法半导体 | 完全替代 | L5987TR和L5987的区别 |
