LPS175-C

Astec 175W Switch Mode Single Output AC/DC Power Supply - LPS 170 Series175W switch mode AC/DC power supply with a wide range single adjustable output and high efficiency. These AC/DC power adapters have active power factor correction, low output ripple, a built-in EMI filter and are supplied with a cover fitted.Wide range adjustable output Remote sense on main input Power fail and remote inhibit 5V standby output and 12V auxiliary output High efficiency of 75% typical at full load Single wire current sharing Low output ripple Built-in EMI filter Safety ground leakage current of 1.0mA @ 50/60 Hz, 264 VAC input Overvoltage, overload and thermal overload protection Active power factor correction compliance to IEC EN61000-3-2 EMC compliance to FCC Class B conducted, CISPR 22 Class B conducted, EN55022 Class B conducted, VDE 0878 PT3 Class B conducted ### 注The 75W output power for this AC/DC power supply is based on a convection rating with a cover fitted. Without a cover this output power would be 110W. The maximum 175W output power for this AC/DC power supply can only be obtained by use of a cooling fan giving 30 cfm forced air, with a cover fitted this rating would be 130W. Derating from 50 to 70°C is 2.5% per °C. Suitable connecting kit for these AC/DC power supplies: stock number 151-666### 认可VDE; UL Recognised; CSA Certified; NEMKO; CB### 标准VDE: 0805/EN60950 IEC950, UL1950, CSA 22.2-234 Level 3, NEMKO: EN 60950/EMKO-TUE### 开关模式 - Astec LP 与 NT 系列，110 至 350W

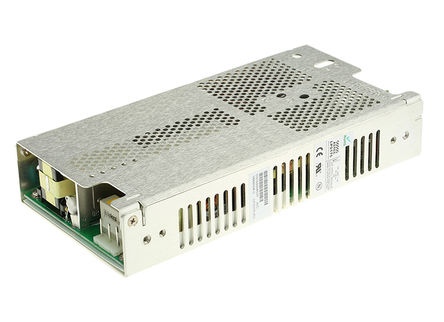

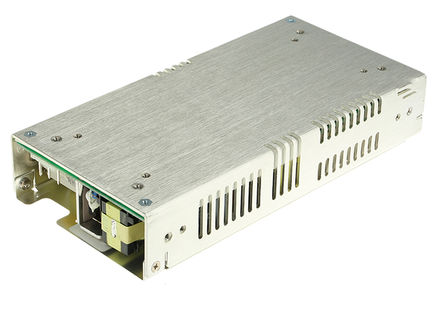

Astec 175W Switch Mode Single Output AC/DC Power Supply - LPS 170 Series

175W switch mode AC/DC power supply with a wide range single adjustable output and high efficiency. These AC/DC power adapters have active power factor correction, low output ripple, a built-in EMI filter and are supplied with a cover fitted.

Wide range adjustable output

Remote sense on main input

Power fail and remote inhibit

5V standby output and 12V auxiliary output

High efficiency of 75% typical at full load

Single wire current sharing

Low output ripple

Built-in EMI filter

Safety ground leakage current of 1.0mA @ 50/60 Hz, 264 VAC input

Overvoltage, overload and thermal overload protection

Active power factor correction compliance to IEC EN61000-3-2

EMC compliance to FCC Class B conducted, CISPR 22 Class B conducted, EN55022 Class B conducted, VDE 0878 PT3 Class B conducted

### 注

The 75W output power for this AC/DC power supply is based on a convection rating with a cover fitted. Without a cover this output power would be 110W. The maximum 175W output power for this AC/DC power supply can only be obtained by use of a cooling fan giving 30 cfm forced air, with a cover fitted this rating would be 130W.

Derating from 50 to 70°C is 2.5% per °C.

Suitable connecting kit for these AC/DC power supplies: stock number 151-666

### 认可

VDE; UL Recognised; CSA Certified; NEMKO; CB

### 标准

VDE: 0805/EN60950 IEC950, UL1950, CSA 22.2-234 Level 3, NEMKO: EN 60950/EMKO-TUE

### 认可

VDE; UL Recognised; CSA Certified; NEMKO; BABT

### 标准

EN61000-3-2
