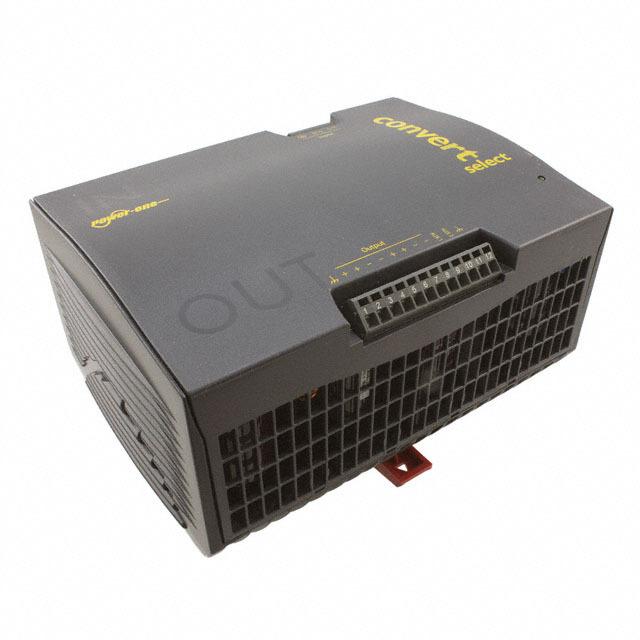

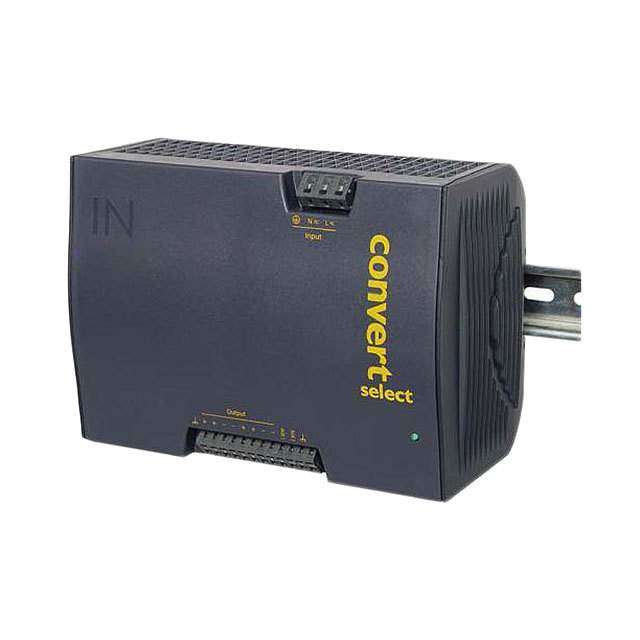

500W Convert Select Series
Power factor 0.93, harmonics IEC/EN 61000-3-2
Emissions according to CISPR 22/EN 55022
High efficiency
Short term output peak power capabilities
Independently regulated outputs
Outputs, no load, overload, and short circuit proof
Extremely small case size
Load regulation 10-100% - 1.5% Vo nom
### 注
Operating temperature is without de-rating.
### 认可
UL Recognised Component for Canada & US
### 认可
UL Recognised Component for Canada & US
### 标准
IEC, EN, UL
额定功率 500 W
输出接口数 1
输入电压DC 220 V
输出电压 24.7 V
输出电流 20 A
隔离电压 2.8 kV
输入电压Max 264 VAC
输入电压Min 85 VAC
输入电压DC Max 350 V
输入电压DC Min 90 V
输入电压AC Max 264 V
输入电压AC Min 85 V
输出电压Max 24 VDC
输出电压Min 24 VDC
输出电流Max 20 A
输入电流Min 7 A
输出功率Max 494 W
工作温度Max 60 ℃
工作温度Min -40 ℃
输入电压 85VAC ~ 264VAC
引脚数 15
宽度 194 mm
高度 138 mm
重量 2.8 kg
工作温度 -40℃ ~ 60℃
产品生命周期 Active
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
