175W Universal Input, Single Output Medically Approved LP SeriesMedical safety approvals Active power factor correction IEC EN61000-3-2 compliance Wide range adjustable output Remote sense on main output Single wire current sharing Power fail and remote inhibit Built-in EMI filter Low output ripple Over voltage protection Overload protection Thermal overload protection DC power good indication 5V standby output 12V Aux. output Frequency | 47-63Hz | ---|---|--- Minimum Load | 0A | Connection | Molex KK not supplied | Power Ratings | Convection | Forced air | 110W, 75W with cover | 175W, 130W with cover Forced air ratings require a user supplied air flow of 30CFM at 50°C. Ratings are reduced when using a cover. | | ### 注Derating from 50 to 70°C is 2.5% per °C.### 标准VDE 0750 / EN60601-1; UL2601; CSA 22·2 No 601·1### 开关模式 - Astec LP 与 NT 系列，110 至 350W

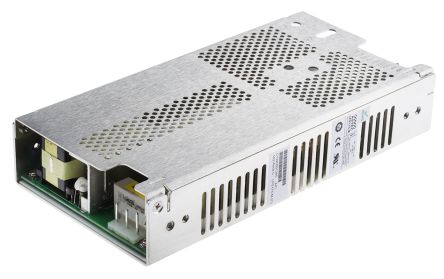

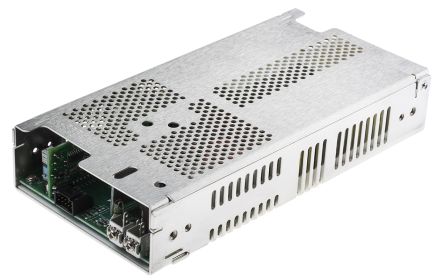

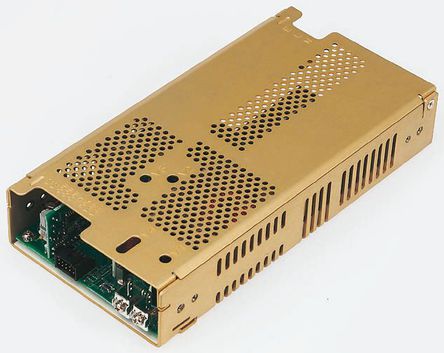

175W Universal Input, Single Output Medically Approved LP Series
Medical safety approvals
Active power factor correction
IEC EN61000-3-2 compliance
Wide range adjustable output
Remote sense on main output
Single wire current sharing
Power fail and remote inhibit
Built-in EMI filter
Low output ripple
Over voltage protection
Overload protection
Thermal overload protection
DC power good indication
5V standby output
12V Aux. output
### 注
Derating from 50 to 70°C is 2.5% per °C.
### 标准
VDE 0750 / EN60601-1; UL2601; CSA 22·2 No 601·1
### 认可
VDE 0750 / EN60601-1; UL2601; CSA 22.2 No 601.1
### 标准
EN61000-3-2
额定功率 110 W
输出接口数 1
输出电压 24 V
输出电流 7.5 A
输出功率 130 W
输入电压DC Max 300 V
输入电压DC Min 120 V
输入电压AC Max 264 V
输入电压AC Min 85 V
输出电流Max 7.5 A
输出功率Max 130 W
工作温度Max 50 ℃
工作温度Min 0 ℃
输入电压 85VAC ~ 264VAC
引脚数 15
封装 封闭
长度 216 mm
宽度 108 mm
高度 38.1 mm
封装 封闭
重量 850 g
工作温度 0℃ ~ 70℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
