SIMPLE SWITCHER® 降压调节器,LM267x 系列### 直流/直流开关调节器,Texas Instruments用于高达 75V 的宽电压输入设计,以及易用性和灵活性之间的平衡。
SIMPLE SWITCHER® 降压调节器,LM267x 系列
立创商城:
降压型 Vin=6.5V~40V Vout=5V 1A
德州仪器TI:
SIMPLE SWITCHER® 6.5V to 40V, 1A Low Component Count Step-Down Regulator
得捷:
LM2672 SIMPLE SWITCHER 6.5V TO 4
欧时:
Texas Instruments LM2672N-5.0/NOPB 降压 开关稳压器, 8 → 40 V输入, 1A最大输出, 5 V输出
e络盟:
TEXAS INSTRUMENTS LM2672N-5.0/NOPB Buck Step Down Switching Regulator, Fixed, 6.5V-40V In, 5V And 1A Out, DIP-8
艾睿:
Adjust the voltage level of your devices with this step down LM2672N-5.0/NOPB DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 1 A. The best way to provide power to your application is by using this, which needs a voltage of at least 8 V and no higher than 40 V. With a fixed output that has a voltage of 5 V, this is power management at its best. This converter is 90typ % efficient. Its switching regulator has a frequency of 260Typ kHz. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
安富利:
Conv DC-DC Single Step Down 8V to 40V 8-Pin PDIP Rail
Chip1Stop:
Conv DC-DC 8V to 40V Step Down Single-Out 5V 1A 8-Pin PDIP Tube
TME:
DC/DC converter; step down; Uin:8÷40V; Uout:5V; 1A; DIP8
Verical:
Conv DC-DC 8V to 40V Synchronous Step Down Single-Out 5V 1A 8-Pin PDIP Tube
Newark:
# TEXAS INSTRUMENTS LM2672N-5.0/NOPB SWITCHING REG 1A 5.0V, 2672, DIP8
DeviceMart:
IC REG BUCK 5V 1A 8-DIP
Win Source:
IC REG BUCK 5V 1A 8-DIP
频率 260 kHz
电源电压DC 40.0V max
输出接口数 1
输出电压 5 V
输出电流 1 A
通道数 1
针脚数 8
静态电流 2.50 mA
调节输出数 1
开关频率 260 kHz
拓扑结构 Buck
输入电压Max 40 V
输入电压Min 6.5 V
输出电压Min 5 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 8 V
输入电压 6.5V ~ 40V
安装方式 Through Hole
引脚数 8

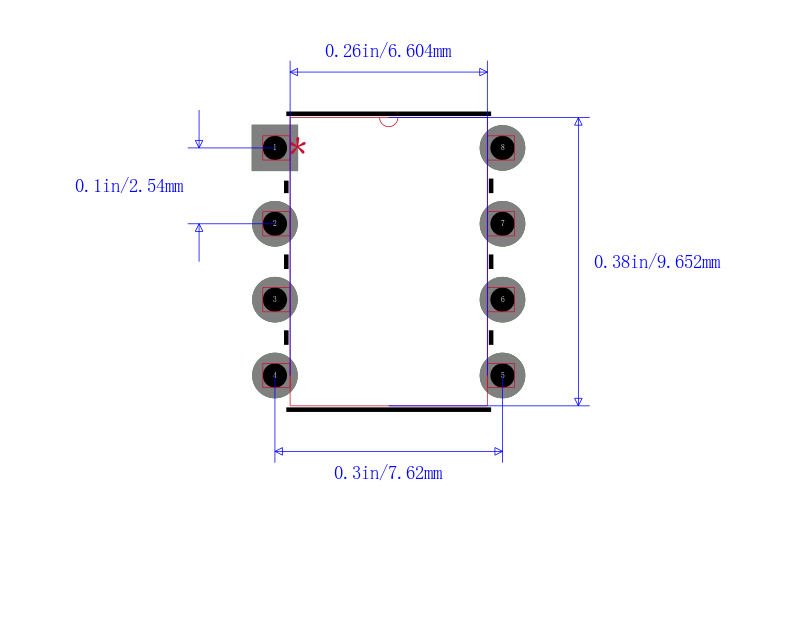

封装 PDIP-8
长度 9.27 mm
宽度 6.35 mm
高度 3.3 mm
封装 PDIP-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2672N-5.0/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM2672N-5.0 德州仪器 | 完全替代 | LM2672N-5.0/NOPB和LM2672N-5.0的区别 |
