LINEAR TECHNOLOGY LT1944-1EMS#PBF 芯片, 升压稳压器, 双路, 1.2-15V, 0.1/0.75A, 10MSOP
The is a dual micropower step-up DC/DC Converter with 1.5µs OFF-time. One converter is designed with a 100mA current limit and a 400ns OFF-time, the other with a 175mA current limit and a 1.5µs OFF-time. The 1.5µs OFF-time converter is ideal for generating an output voltage that is close to the input voltage i.e. a LiIon to 5V converter or a two-cell to 3.3V converter. With an input voltage range of 1.2 to 15V, the LT1944-1 is ideal for a wide variety of applications. It features a quiescent current of only 20µA at no load, which further reduces to 0.5µA in shutdown. A current limited, fixed OFF-time control scheme conserves operating current, resulting in high efficiency over a broad range of load current. Tiny, low profile inductors and capacitors can be used to minimize footprint and cost in space-conscious portable applications.
电源电压DC 15.0V max
输出接口数 2
输出电压 1.23V ~ 36V
输出电流 175 mA
针脚数 10
输入电压Max 15 V
输入电压Min 1.2 V
输出电压Max 34 V
输出电压Min 1.23 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.2 V
输入电压 1.2V ~ 15V
安装方式 Surface Mount
引脚数 10

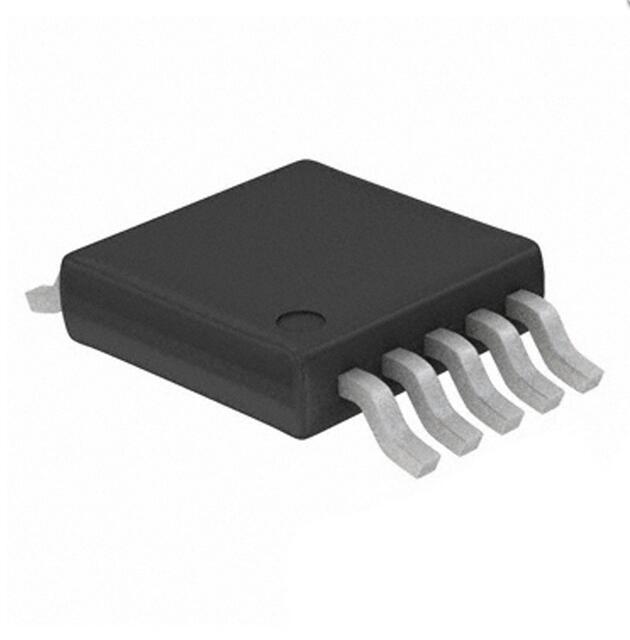

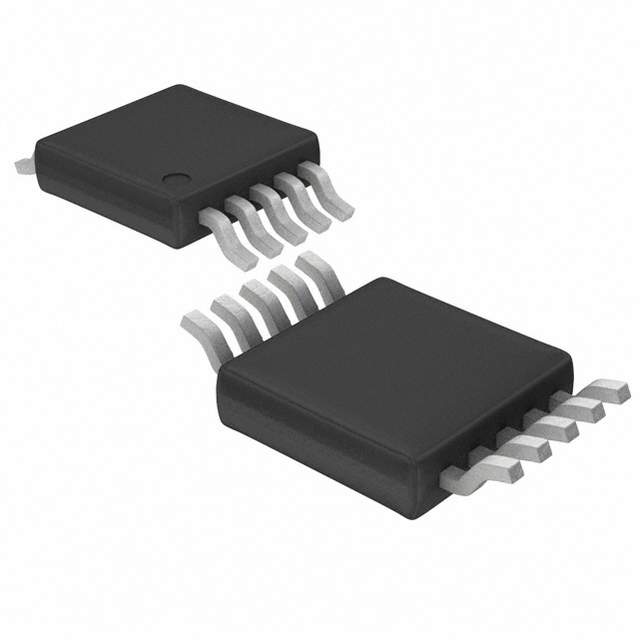

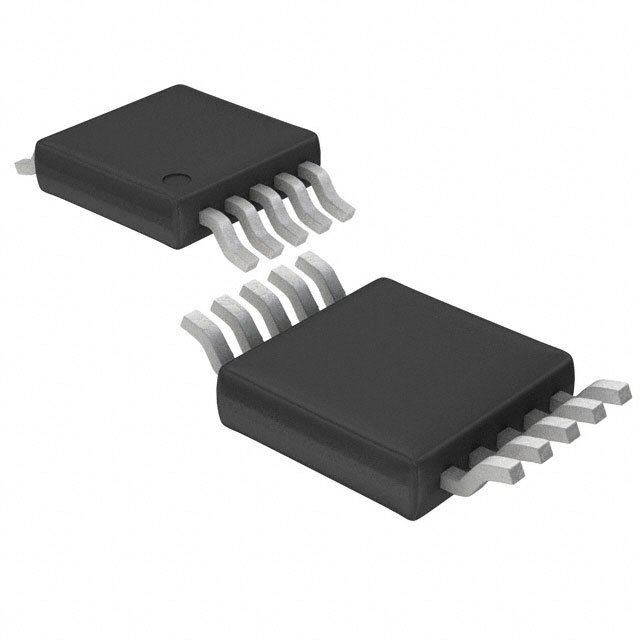

封装 MSOP-10
高度 0.86 mm
封装 MSOP-10
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Computers & Computer Peripherals, Power Management, 电源管理, Consumer Electronics, 便携式器材, Portable Devices, 消费电子产品, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1944-1EMS#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1944-1EMS#TRPBF 凌力尔特 | 完全替代 | LT1944-1EMS#PBF和LT1944-1EMS#TRPBF的区别 |
