3A 降压电压稳压器
DESCRIPON
The LM2676 series of regulators are monolithic integrated circuits which provide all of the active
functions for a step-down buck switching regulator capable of driving up to 3A loads with excellent line and load regulation characteristics. High efficiency >90% is obtained through the use of a low ON-resistance DMOS power switch. The series consists of fixed output voltages of 3.3V, 5V and 12V and an adjustable output version.
FEATURES
• Efficiency Up to 94%
• Simple and Easy to Design with Using Off The-Shelf External Components
• 150 mΩ DMOS Output Switch
• 3.3V, 5V and 12V Fixed Output and Adjustable 1.2V to 37V Versions
• 50μA Standby Current When Switched OFF
• ±2% Maximum Output Tolerance Over Full Line and Load Conditions
• Wide Input Voltage Range: 8V to 40V
• 260 KHz Fixed Frequency Internal Oscillator
• −40 to +125°C Operating Junction Temperature Range
输出接口数 1
输出电压 12 V
输出电流 3 A
针脚数 7
静态电流 4.20 mA
调节输出数 1
开关频率 260 kHz
拓扑结构 Buck
开关电流 4.5 A
输入电压Max 40 V
输入电压Min 8 V
输出电压Min 12 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 8V ~ 40V
安装方式 Surface Mount
引脚数 8

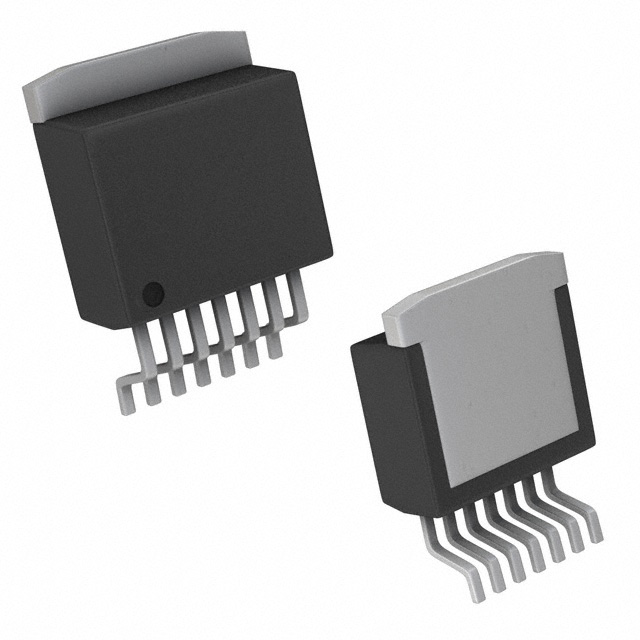

封装 TO-263-8
封装 TO-263-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LM2676SX-12/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM2676SX-12 德州仪器 | 类似代替 | LM2676SX-12/NOPB和LM2676SX-12的区别 |
LM2676S-12/NOPB 德州仪器 | 功能相似 | LM2676SX-12/NOPB和LM2676S-12/NOPB的区别 |
