LDO Regulator Pos 1.24V to 60V 0.25A Automotive 12Pin DFN EP
DESCRIPTION
The LT® 3012 is a high voltage, micropower low dropout linear regulator. The device is capable of supplying 250mA of output current with a dropout voltage of 400mV. Designed for use in battery-powered or high voltage systems, the low quiescent current 40μA operating and 1μA in shutdown makes the LT3012 an ideal choice. Quiescent current is also well controlled in dropout.
FEATURES
Wide Input Voltage Range: 4V to 80V
Low Quiescent Current: 40μA
Low Dropout Voltage: 400mV
Output Current: 250mA
No Protection Diodes Needed
Adjustable Output from 1.24V to 60V
1μA Quiescent Current in Shutdown
Stable with 3.3μF Output Capacitor
Stable with Aluminum, Tantalum or Ceramic Capacitors
Reverse-Battery Protection
No Reverse Current Flow from Output to Input
Thermal Limiting

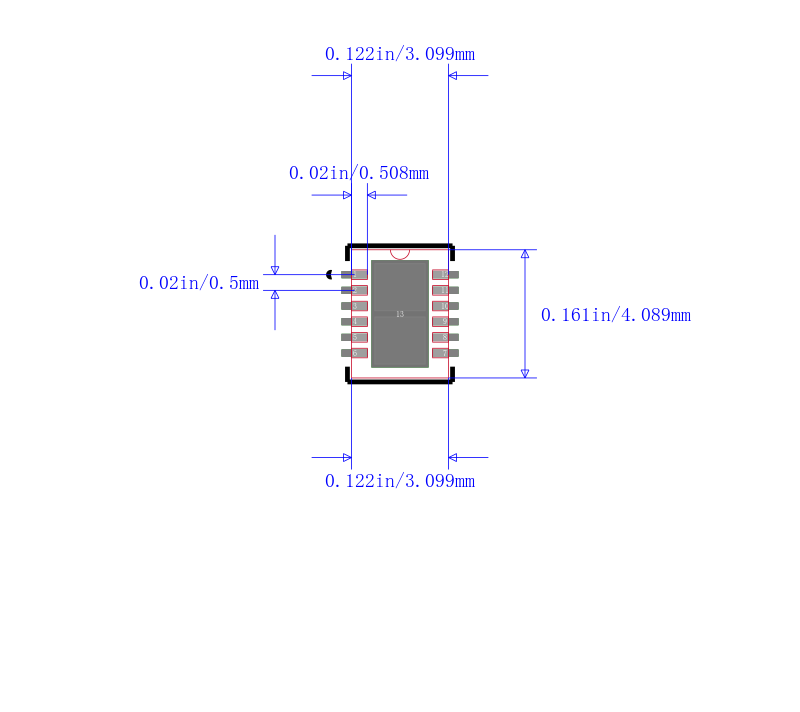

Thermally Enhanced 16-Lead TSSOP and 12-Pin 4mm ×3mm DFN Packages
APPLICATIONS
Low Current High Voltage Regulators
Regulator for Battery-Powered Systems
Telecom Applications
Automotive Applications
