LTC4070EMS8E#PBF

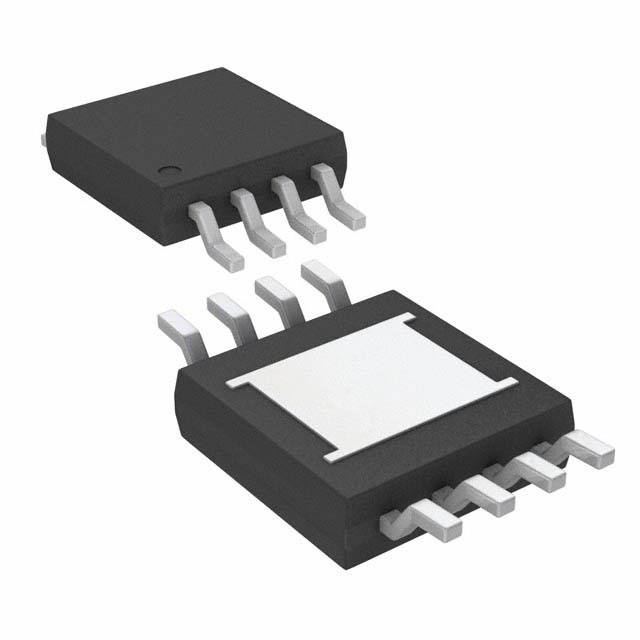

LINEAR TECHNOLOGY  LTC4070EMS8E#PBF  芯片, 锂电池充电器, 8MSOP

The is a Li-ion/polymer shunt Battery Charger System allows simple charging of Li-ion/Polymer batteries from very low current, intermittent or continuous charging sources. The 450nA to 50mA operating current makes charging possible from previously unusable sources. With the addition of an external pass device, shunt current may be boosted to 500mA. Stacked cell high voltage battery packs are inherently balanced with shunt charging. With its low operating current, the LTC4070 is well suited to charge thin film batteries in energy harvesting applications where charging sources may be intermittent or very low power. The unique architecture of the LTC4070 allows for an extremely simple battery charger solution; requiring just one external resistor. The charger offers a pin selectable float voltage with 1% accuracy across the full range of operating temperature and shunt current.

.

1% Float voltage accuracy over full temperature and shunt current range

.

Ultralow power pulsed NTC float conditioning for Li-ion/polymer protection

.

Suitable for intermittent, continuous and very low power charging sources

.

Low and high battery status outputs

.

Simple low voltage load disconnect application
