开关控制器 650mA Miniature, Adjustable, Step-Down DC-DC Converter for RF Power Amplifiers 8-DSBGA -30 to 85
The LM3205 is a DC-DC converter optimized for powering RF power amplifiers PAs from a single Lithium-Ion cell, however they may be used in many other applications. It steps down an input voltage from 2.7V to 5.5V to a variable output voltage from 0.8Vtyp. to 3.6Vtyp.. Output voltage is set using a VCON analog input for controlling power levels and efficiency of the RF PA.
The LM3205 offers superior performance for mobile phones and similar RF PA applications. Fixed-frequency PWM operation minimizes RF interference. Shutdown function turns the device off and reduces battery consumption to 0.01 µA typ..
The LM3205 is available in DSBGA package and WSON package. For all other package options contact your local sales office.
A high switching frequency 2 MHz allows use of tiny surface-mount components. Only three small external surface-mount components, an inductor and two ceramic capacitors are required.
输出接口数 1
输出电压 0.8V ~ 3.6V
输出电流 650 mA
开关频率 2 MHz
拓扑结构 Buck
输入电压Max 5.5 V
输入电压Min 2.7 V
输出电压Max 3.6 V
输出电压Min 0.8 V
输出电流Max 0.65 A
下降时间 20 µs
工作温度Max 85 ℃
工作温度Min -30 ℃
输入电压 5.5 V
安装方式 Surface Mount
引脚数 8

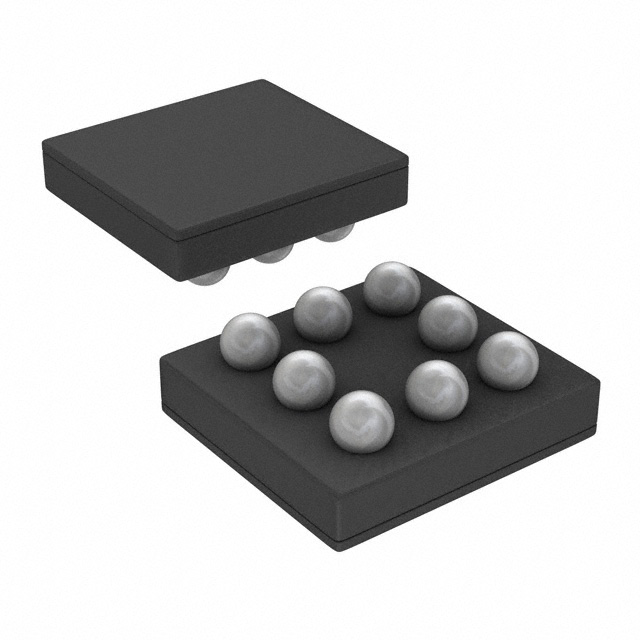

封装 WFBGA-8
封装 WFBGA-8
工作温度 -30℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
