GL 系列超小型压扣式端子类型铝电解电容器 105°C 超小型号，因此适用于精简设备 ### 2 针 105 ° C

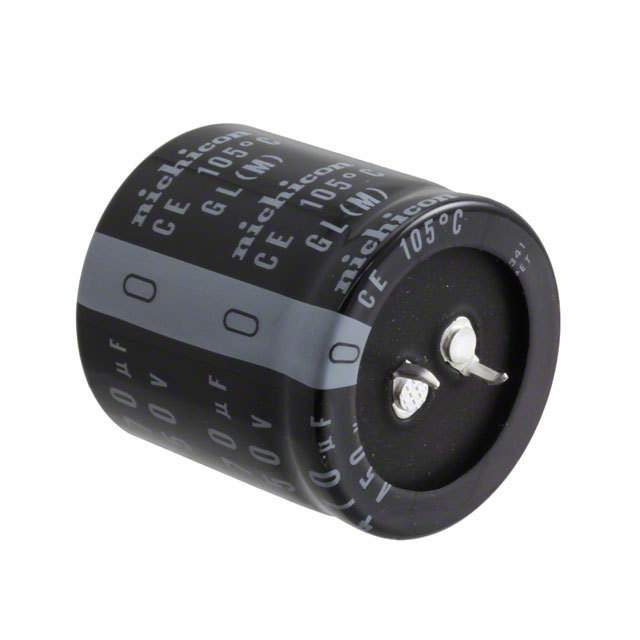

GL 系列超小型
压扣式端子类型铝电解器
105°C 超小型号，因此适用于精简设备
欧时:
Al cap snapin GL series 400V 680uF
立创商城:
680uF ±20% 400V
得捷:
CAP ALUM 680UF 20% 400V SNAP
艾睿:

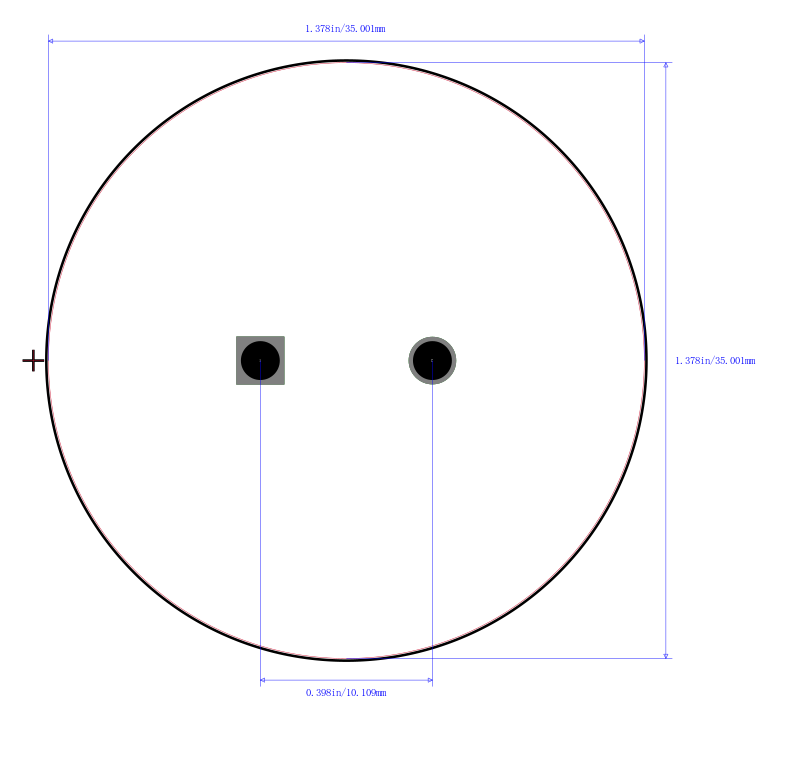

This electrolytic LGL2G681MELC35 aluminum capacitor from Nichicon has a relatively high ESR meaning that it easily generates high heat for a given current level. It can withstand a voltage of 400 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. This product is 35 mm tall with a diameter of 35 mm. It has a tolerance of 20%. The LGL2G681MELC35 aluminum electrolytic capacitor has a snap-in termination style. Its capacitance value is 680uF. Its leakage current is 1560@5Min μA.
Allied Electronics:
680uF 400 V dc Aluminium Electrolytic Capacitor, GL Series 2000h 35Dia.x35mm
安富利:
Cap Aluminum 680uF 400V 20% 35 X 35mm 10mm 1740mA 2000 hr 105°C Bulk
