标准LED-SMD Yellow, 587nm 11.2mcd, 2mA
黄色 587nm 指示 - 分立 1.8V 2-SMD,J 形引线
得捷: LED YELLOW CLEAR SMD
贸泽: 标准LED-SMD Yellow, 587nm 11.2mcd, 2mA
艾睿: LED Uni-Color Yellow 591nm 2-Pin SMD T/R
正向电压 1.8 V
波长 587 nm
视角 120°
峰值波长 591 nm
测试电流 2 mA
正向电压Max 2.2 V
正向电流Max 20 mA
工作温度Max 100 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 2
封装 SMD-2

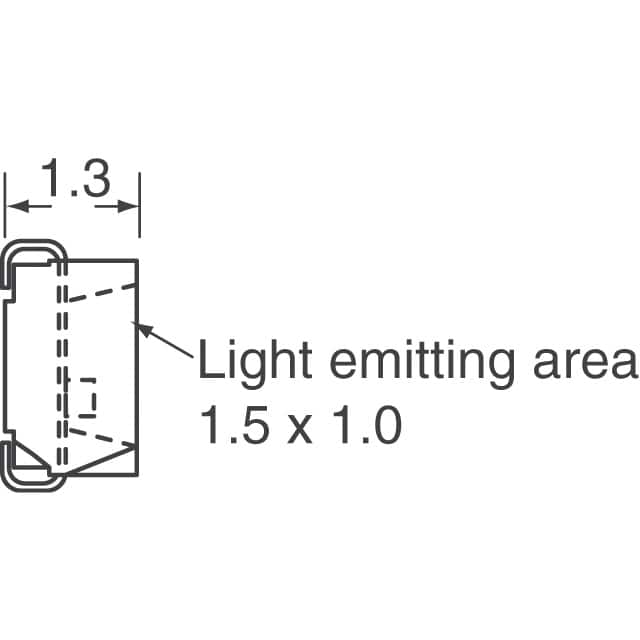

长度 2.1 mm
宽度 1.5 mm
高度 1.40 mm
颜色 Yellow
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 无铅
数据手册
