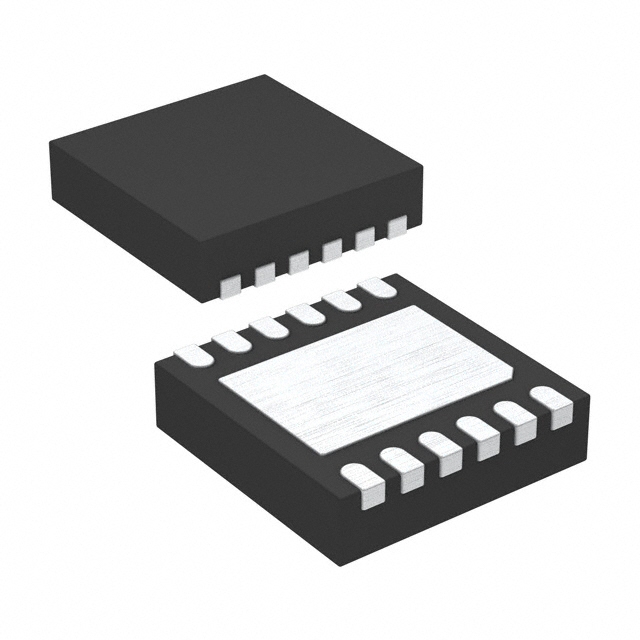

LINEAR TECHNOLOGY LT3081IDF#PBF 芯片, LDO线性稳压器, 坚固, 1.5A, 12DFN
The is a low-dropout Linear Regulator designed for rugged industrial applications. Key features of the IC are the extended safe operating area SOA, output current monitor, temperature monitor and programmable current limit. It can be paralleled for higher output current or heat spreading. The device withstands reverse input and reverses output-to-input voltages without reverse current flow. The LT3081 precision 50µA reference current source allows a single resistor to program output voltage to any level between zero and 34.5V. The current reference architecture makes load regulation independent of output voltage. It is stable with or without input and output capacitors. The output current monitor and die junction temperature output provide system monitoring and debug capability. In addition, a single resistor programs current limit. Internal protection circuitry includes reverse-battery and reverse-current protection, current limiting and thermal limiting.
输出接口数 1
输出电压 0V ~ 34.5V
输出电流 1.5 A
供电电流 50µA ~ 5mA

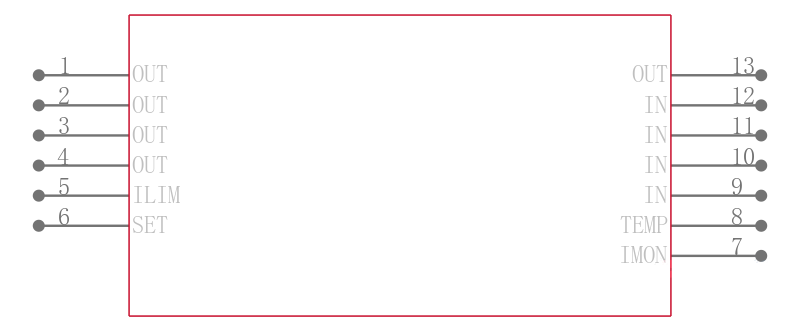

针脚数 12
跌落电压 1.23 V
输入电压Max 36 V
输入电压Min 1.2 V
输出电压Max 34.5 V
输出电压Min 0 V
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 12

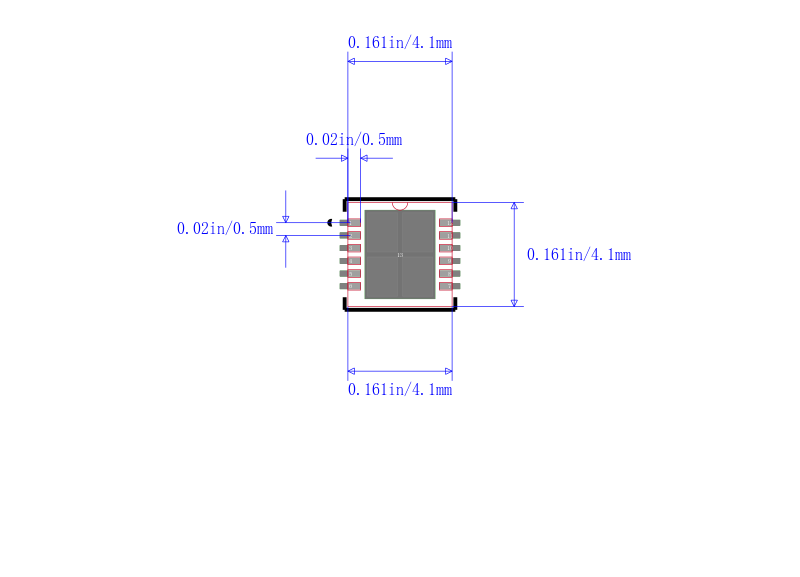

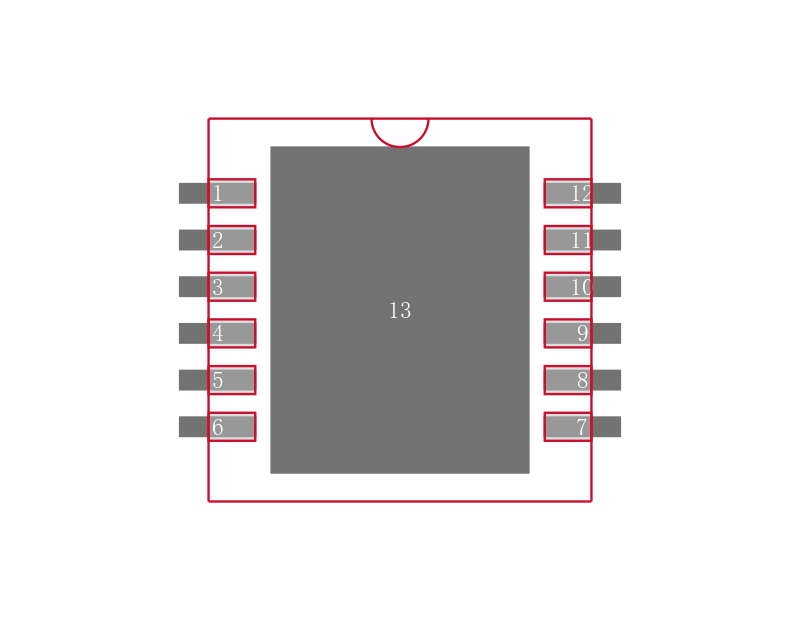

封装 DFN-12
高度 0.75 mm
封装 DFN-12
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Each
制造应用 Power Management, 安全, Industrial, Safety, 电源管理, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT3081IDF#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3081IDF#TRPBF 凌力尔特 | 完全替代 | LT3081IDF#PBF和LT3081IDF#TRPBF的区别 |
