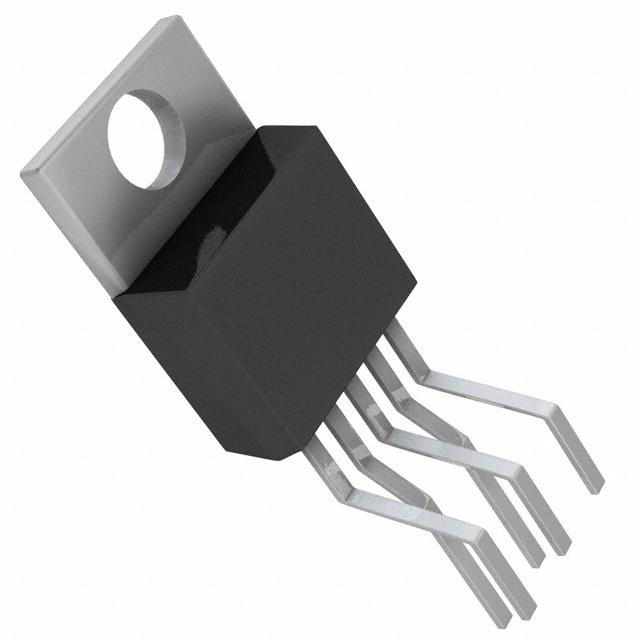

LT1764ET-1.5#PBF

低压差稳压器 1.5V Fast Transient 3A LDO

Maintain a steady voltage level with this LDO linear regulator from . Its typical dropout voltage at current is 0.02@1mA|0.07@100mA|0.14@500mA|0.25@1.5A|0.34@3A V. This voltage regulation device"s single output can produce a current up to 3 A. By only needing an input voltage of 2.7 V with a maximum of 20 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 1.5 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 7mV and line regulation of 10mV. The maximum dropout voltage is 0.05@1mA|0.13@100mA|0.2@500mA|0.33@1.5A|0.45@3A|0.66@2700mA V. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
