发光二极管, SMARTLED®, 红色, SMD, 603, 20 mA, 2 V, 633 nm

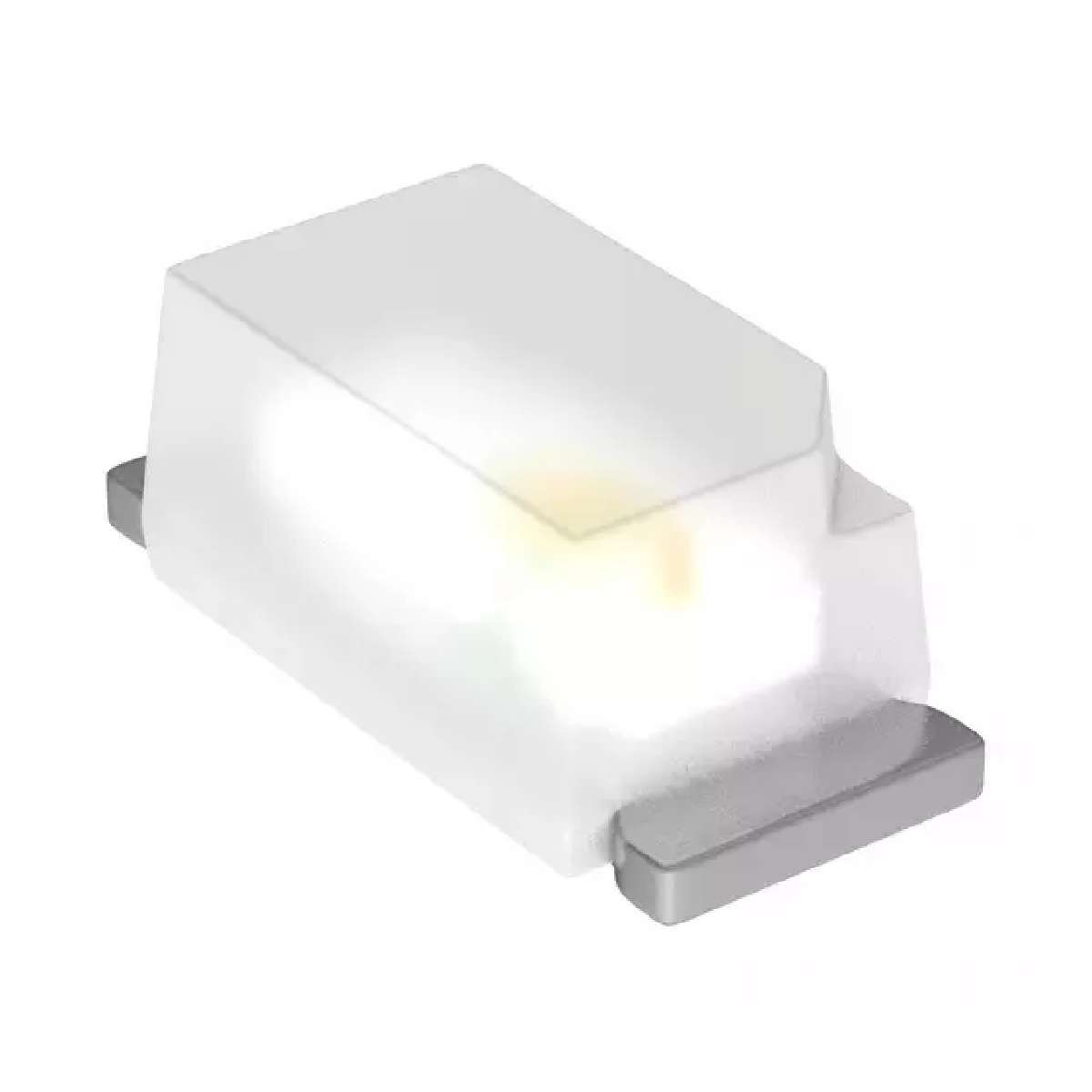

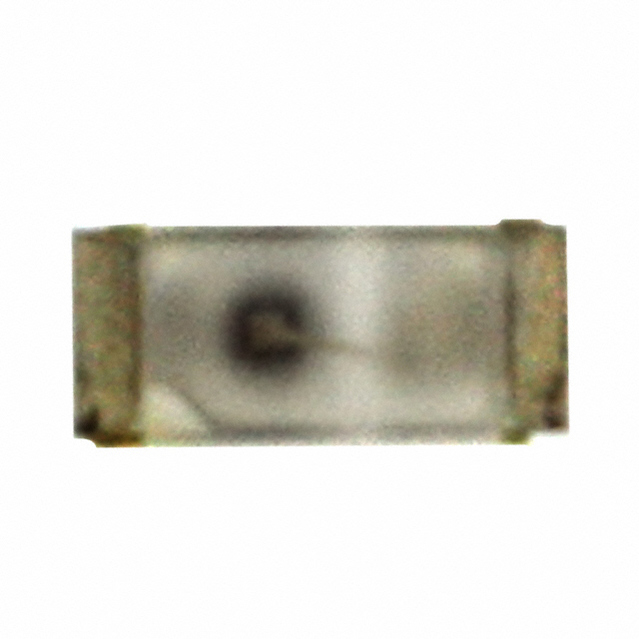

The LSL296-P2Q2-1-Z is a SMART® SMD LED with rectangular-shaped lens. It is suitable for LCD backlighting, toys, outdoor displays, signal and symbol luminary.
得捷:
LED RED DIFFUSED 0603 SMD
贸泽:
标准LED-SMD Super Red, 633nm 112mcd, 20mA
e络盟:
发光二极管, SMARTLED®, 红色, SMD, 603, 20 mA, 2 V, 633 nm
艾睿:
LED Uni-Color Red 645nm 2-Pin Chip 06031608Metric T/R
Chip1Stop:
LED Uni-Color Red 645nm 2-Pin Chip 06031608Metric T/R
Verical:
LED Uni-Color Red 645nm 2-Pin Chip 06031608Metric T/R
Win Source:
LED RED DIFFUSED 0603 SMD / Red 630nm LED Indication - Discrete 2V 0603 1608 Metric
工作电压 2 V
正向电压 2 V
波长 633 nm
发光强度 112 mcd
视角 160°
峰值波长 645 nm
耗散功率 170 W
测试电流 20 mA
正向电流 60 mA
正向电压Max 2.3 V
正向电流Max 60 mA
工作温度Max 100 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.3 mm
宽度 0.8 mm
高度 0.65 mm
封装公制 1608
封装 0603
颜色 Red
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 商业, 信令
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC标准 No SVHC
