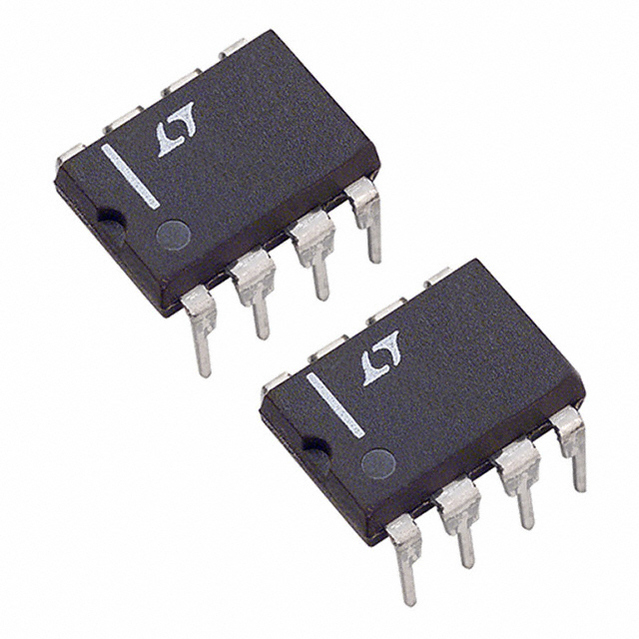

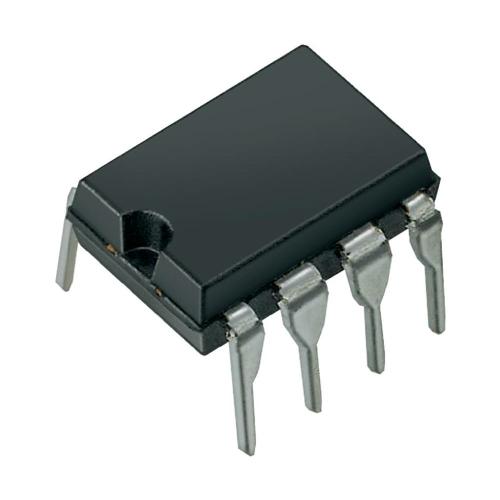

LT1236ACN8-5

V-Ref Precision 5V 10mA 8Pin PDIP N

DESCRIPTION

The LT® 1236 is a precision reference that combines ultra low drift and noise with excellent long-term stability and high output accuracy. The reference output will both source and sink up to 10mA and is almost totally immune to input voltage variations. Two voltages are available: 5V and 10V. The 10V version can be used as a shunt regulator two-terminal zener with the same precision characteris tics as the three-terminal connection. Special care has been taken to minimize thermal regulation effects and temperature induced hysteresis.

FEATURE

■ Ultra-Low Drift: 5ppm/°C Max

■ Trimmed to High Accuracy: 0.05% Max

■ Industrial Temperature Range SO Package

■ Operates in Series or Shunt Mode

■ Pin Compatible with AD586, AD587

■ Output Sinks and Sources in Series Mode

■ Very Low Noise < 1ppm P-P0.1Hz to 10Hz

■ 100% Noise Tested

■ > 100dB Ripple Rejection

■ Minimum Input/Output Differential of 1V

APPLICATIONS

■ A/D and D/A Converters

■ Precision Regulators

■ Precision Scales

■ Inertial Navigation Systems

■ Digital Voltmeters
