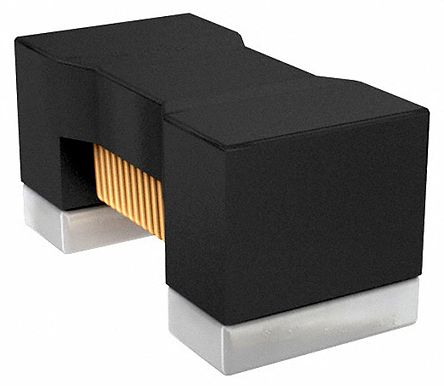

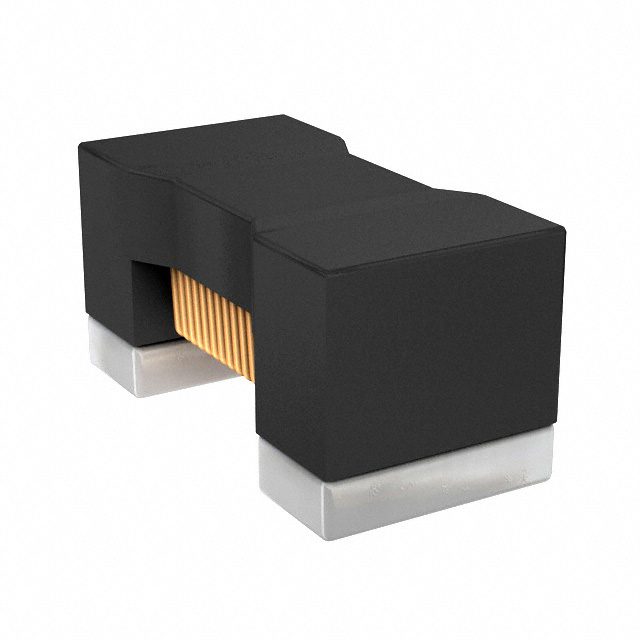

LQW18AN6N2D00D

MURATA  LQW18AN6N2D00D  表面贴装高频电感器, LQW18AN系列, 6.2 nH, ± 0.5nH, 0603 [1608 公制], 6 GHz, 0.082 ohm

固定器

得捷:
FIXED IND 6.2NH 750MA 82MOHM SMD

欧时:
### Murata 0603 LQW18AN 系列线绕电感器高质量线圈电感器，设计用于 VHF 和 UHF 应用。 高谐振频率。 低容差电感值。 带有后缀 "10D" 的型号具有较低直流电阻值。 **应用：**高频率电路，用于无线电信设备：例如蓝牙、GSM、W-LAN。 ![http://china.rs-online.com/largeimages/L0109217-10.jpg]http://china.rs-online.com/largeimages/L0109217-10.jpg ### SMT 0603 电感器（扼流圈）

立创商城:
6.2nH ±0.5nH 82mΩ

e络盟:
高频电感器, 6.2 nH, LQW18AN系列, 750 mA, 0603 [1608 公制], 非屏蔽, 0.082 ohm

艾睿:
This rf chip LQW18AN6N2D00D surface mount inductor from Murata is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This SMD inductor has a maximum DC current of 750m A with a maximum resistance of 82m Ohm. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 6G Hz. This device is made with wirewound technology. This product is 1.8 mm long, 1 mm tall and 1 mm deep. It has an inductance of 6.2n H.

安富利:
Ind RF Chip Wirewound 6.2nH 0.5nH 100MHz 35Q-Factor 750mA 0603 Paper T/R

Chip1Stop:
Inductor RF Chip Unshielded Wirewound 6.2nH 0.5nH 100MHz 35Q-Factor Ceramic 750mA 82mOhm DCR 0603 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.0062uH 0.5nH 100MHz 35Q-Factor Non Magnetic 0.75A 0.082Ohm DCR 0603 T/R

Newark:
# MURATA  LQW18AN6N2D00D  Surface Mount High Frequency Inductor, LQW18AN Series, 6.2 nH, 0.5nH, 0603 [1608 Metric], 6 GHz
